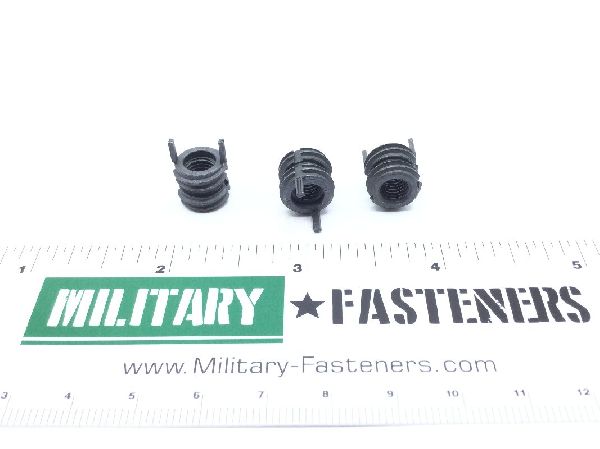

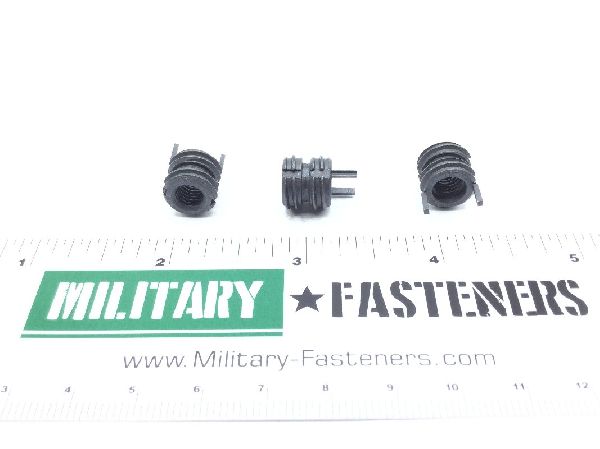

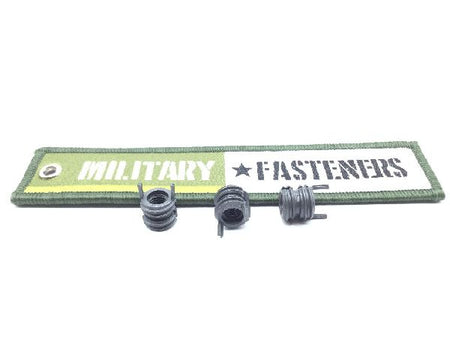

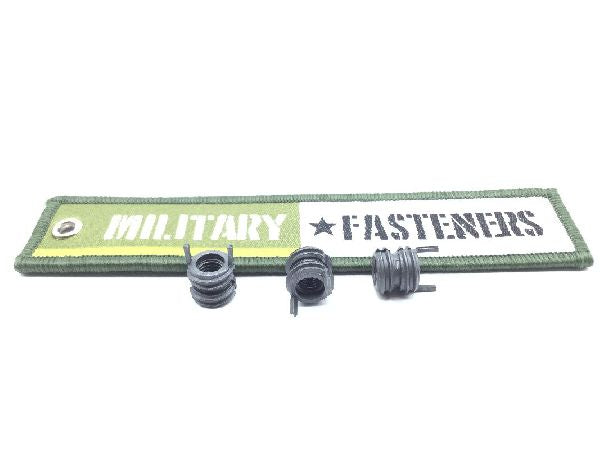

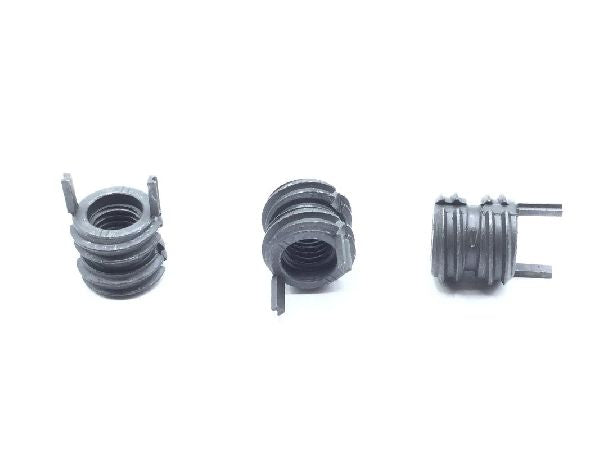

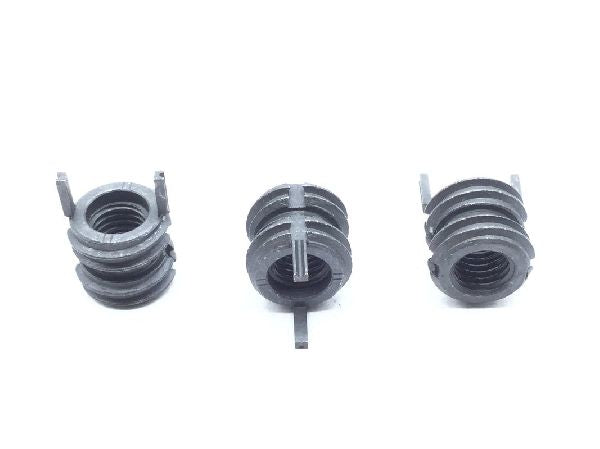

NAS1395-4L Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $13.79

Units per Pack 5

Price per Pack $68.95

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $68.95

Add item to quote

Material

Steel comp 4140

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.250 inches

Features: Individually keyed
Features Provided: Individually keyed
Full Internal Thread Length: 0.30 inches
Insert Size: 7/16-14 unc
Internal Thread Relief Depth: 0.07 inches
Length: 0.37 inches
Material Specification: Mil-s-5626 military specification single material response
Special Features: Has internal thread lock
Specification Data: 80205-1395 professional/industrial association standard
Style Designator: Keylock
Thread Direction: Right-hand
Thread Length: 0.305 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
