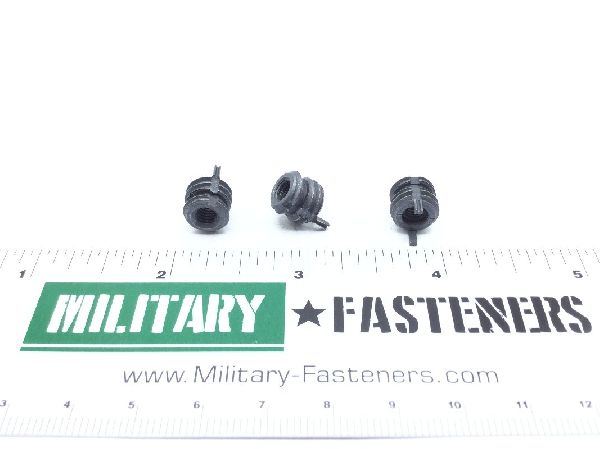

NAS1395CA3L Screw Thread Insert

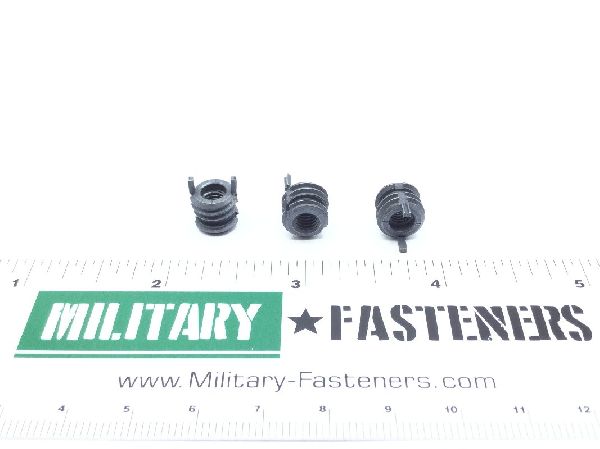

NAS1395CA3L Screw Thread Insert (2)

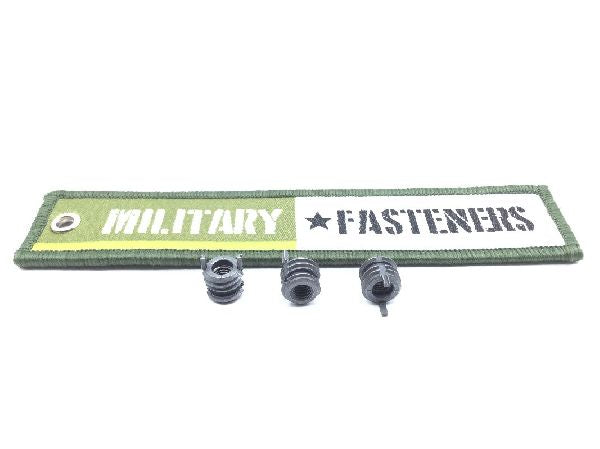

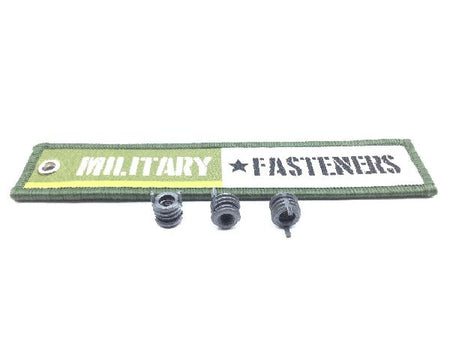

NAS1395CA3L Screw Thread Insert (3)

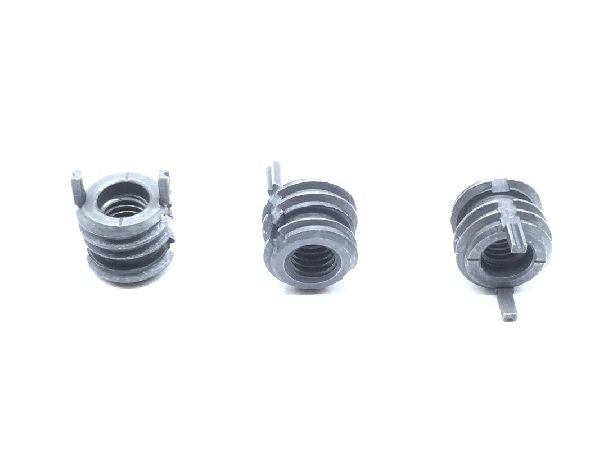

NAS1395CA3L Screw Thread Insert (4)

NAS1395CA3L Screw Thread Insert (5)

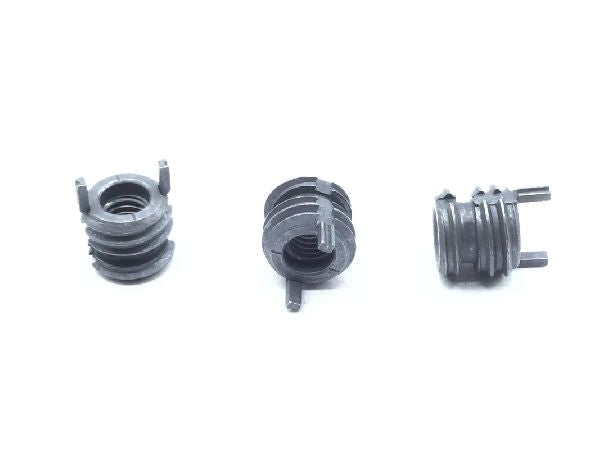

NAS1395CA3L Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1395CA3L Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $26.26

Units per Pack 5

Price per Pack $131.30

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $131.30

Add item to quote

Thread Class

3b

Thread Size

0.190 inches

Features: Individually keyed
Features Provided: Individually keyed
Full Internal Thread Length: 0.240 inches
Insert Size: 0.375-16 unc (coarse thread)-2a
Internal Thread Relief Depth: 0.070 inches
Length: 0.310 inches
Specification Data: 80205-nas1395 professional/industrial association standard
Style Designator: Grooved keylock
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
