NAS1397P8N Loop Clamp
NAS1397P8N Loop Clamp (2)
NAS1397P8N Loop Clamp (3)

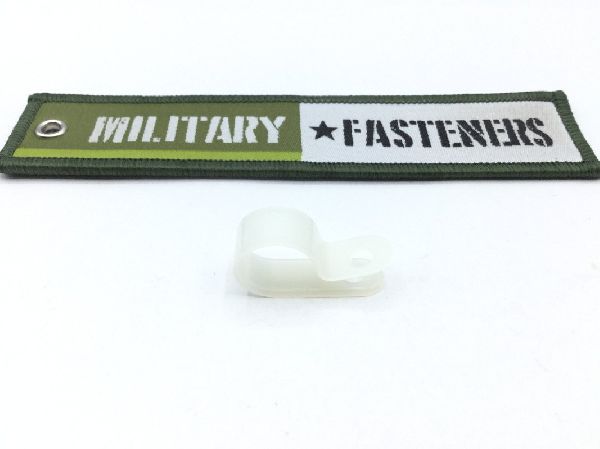

NAS1397P8N Loop Clamp (4)

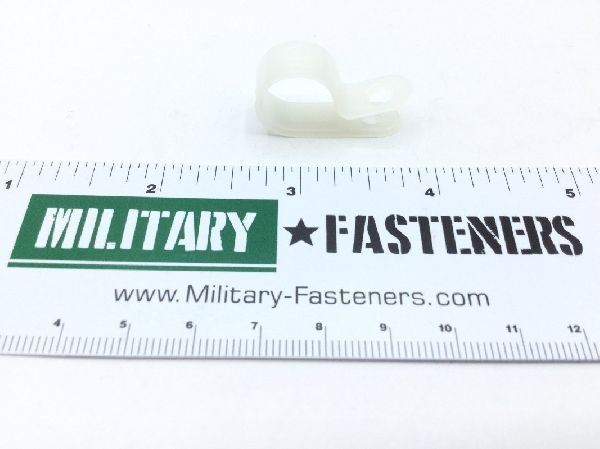

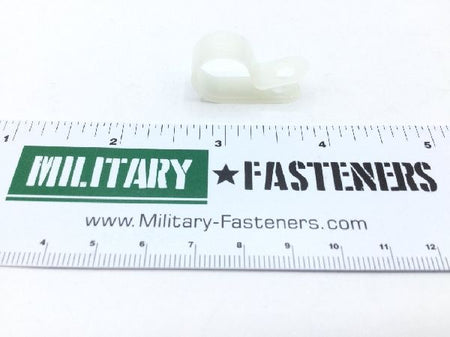

NAS1397P8N Loop Clamp (5)

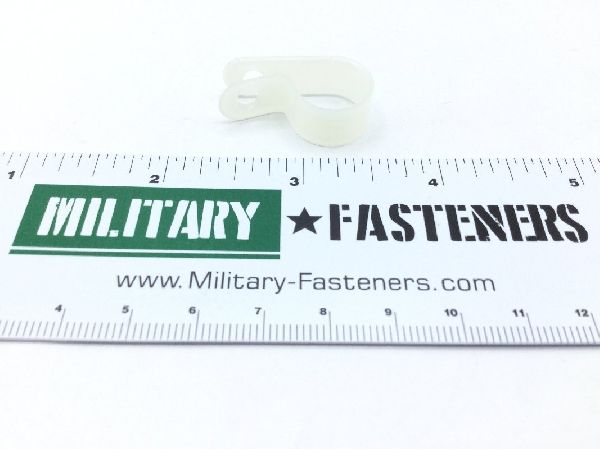

NAS1397P8N Loop Clamp (6)
NAS1397P8N Loop Clamp
NAS1397P8N Loop Clamp (2)
NAS1397P8N Loop Clamp (3)
NAS1397P8N Loop Clamp (4)
NAS1397P8N Loop Clamp (5)
NAS1397P8N Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1397P8N Loop Clamp

Product Series
NAS
ECCN
EAR99
Schedule
7616.10.9090
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Plastic polyamide
Center To Center Distance Between Loop And Mounting Hole
Between 0.500 inches and 0.620 inches
Distance From Loop Center To Tongue End
0.740 inches
Loop Inside Diameter
0.500 inches
Material Specification
L-p-410 federal specification single material response
Material Thickness
Between 0.035 inches and 0.065 inches
Overall Width
Between 0.365 inches and 0.385 inches
Special Features
Natural color
Specification Data
80205-nas1397 professional/industrial association standard
Style Designator
Single loop
Tongue Hole Type
unthreaded round
Diameter
Between 0.167 inches and 0.177 inches
