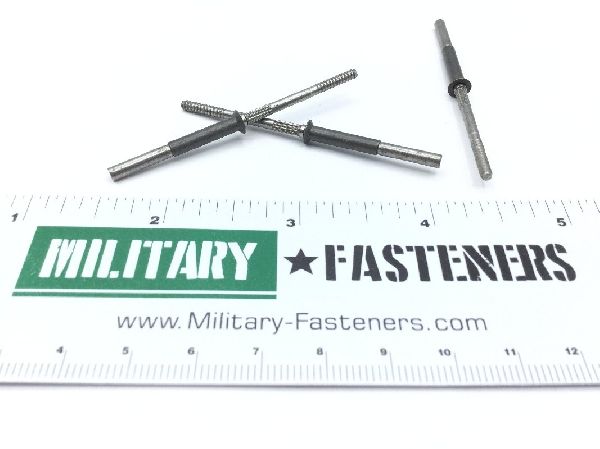

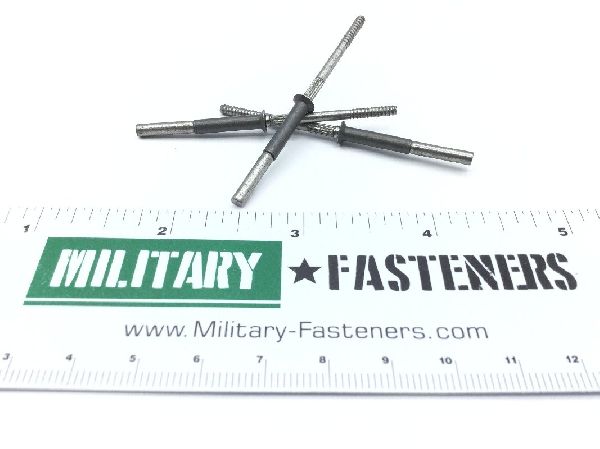

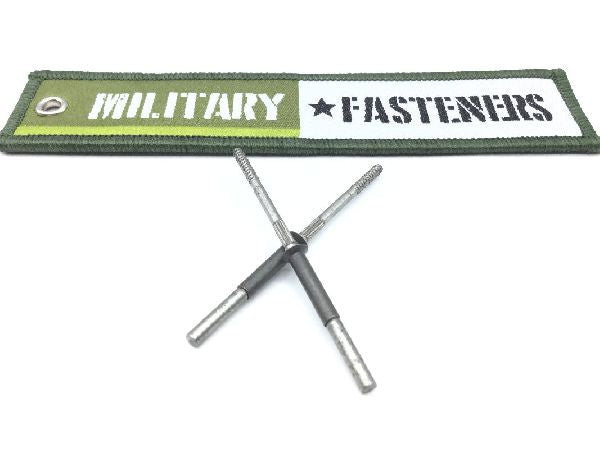

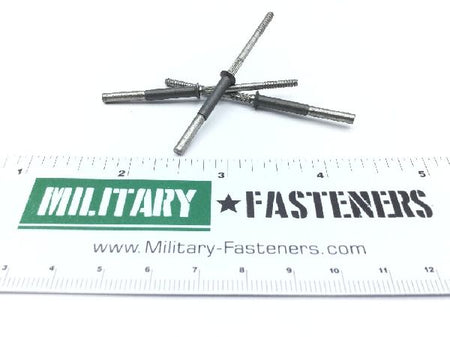

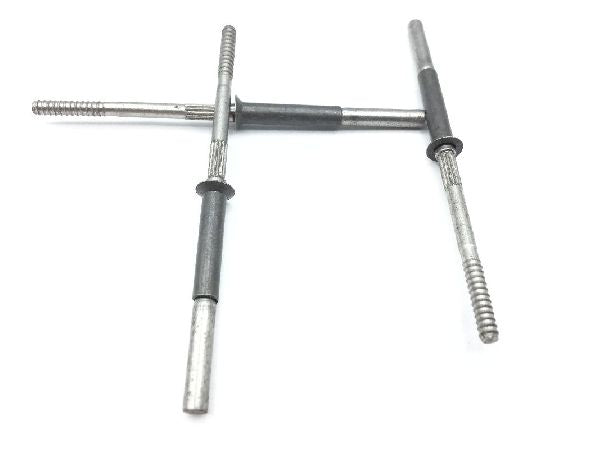

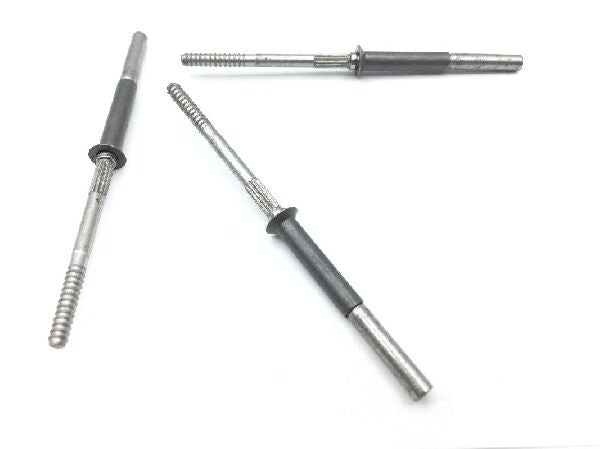

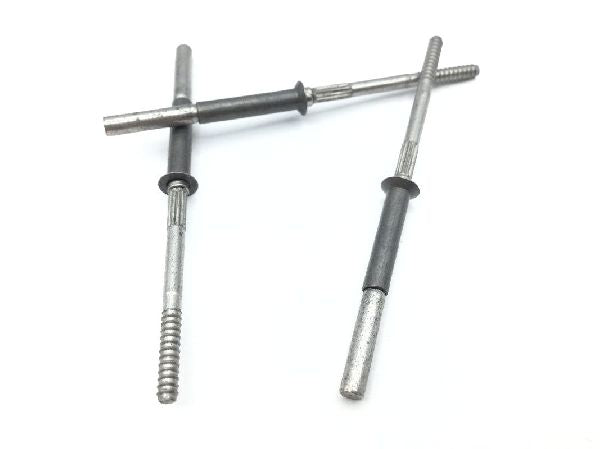

NAS1399C4-8 Blind Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk

Material

Nickel alloy 400 locking ring or nickel alloy r-405 locking ring

Countersink Angle: Between 98.5 degrees and 101.5 degrees
Expansion Device: Serrated stem-type w
Fastener Length: 0.635 inches
Grip Length: Between 0.438 inches and 0.500 inches
Head Major Diameter: Between 0.221 inches and 0.229 inches
Material Specification: Qq-n-281 class a federal specification 1st material response locking ring or qq-n-281 cl b federal specification 2nd material response locking ring
Shank Diameter: Between 0.124 inches and 0.128 inches
Shank Style: Self-plugging mechanically locked stem
Specification Data: 80205-nas1399 professional/industrial association standard
