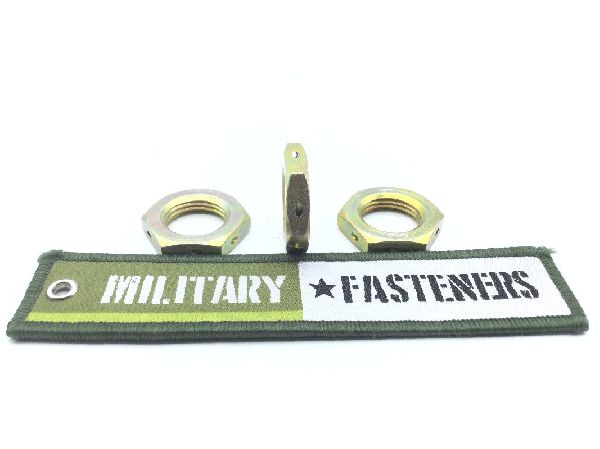

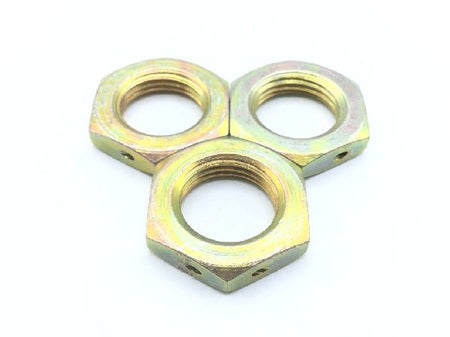

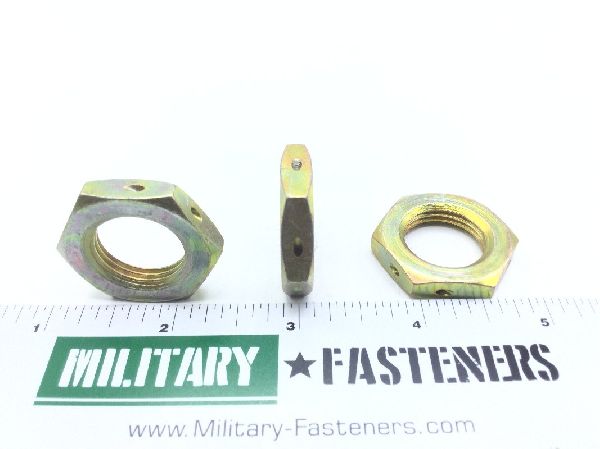

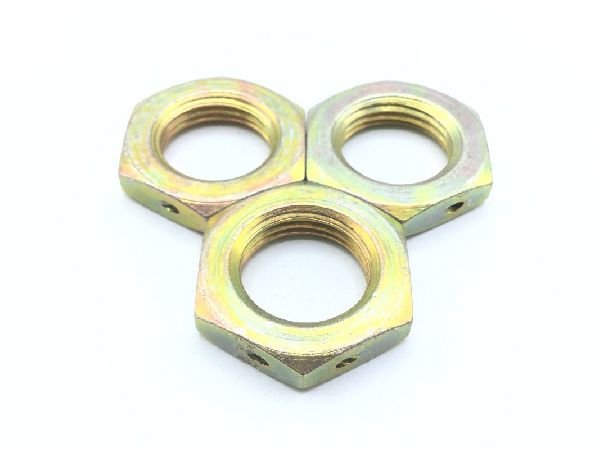

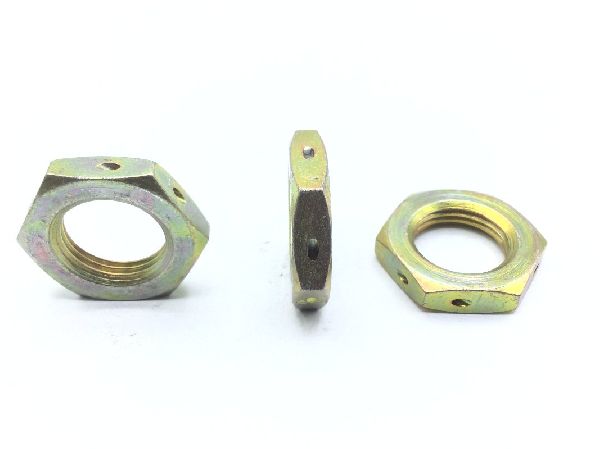

NAS1423-12 Plain Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $10.34

Units per Pack 5

Price per Pack $51.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $51.70

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.750 inches

Bearing Surface Finish: 250.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 110.0 degrees nut
Drilled Hole Diameter: 0.070 inches
Hardness Rating: Between 34.0 rockwell c and 38.0 rockwell c
Hole Configuration Style: Configuration b
Hole Type And Quantity: 3 drilled
Material Specification: Mil-s6758 military specification 1st material response or mil-s-5000 military specification 2nd material response or mil-s-5000 military specification 3rd material response
Nut Height: Between 0.240 inches and 0.260 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 16
Width Across Flats: Between 1.109 inches and 1.127 inches
