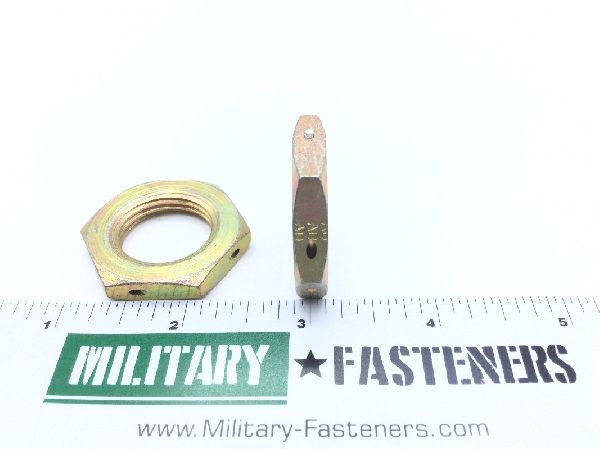

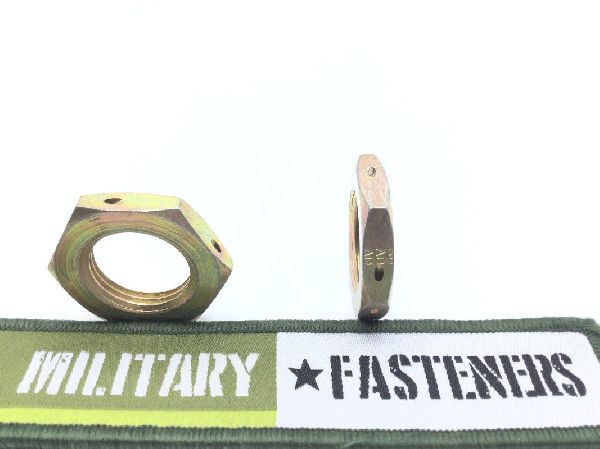

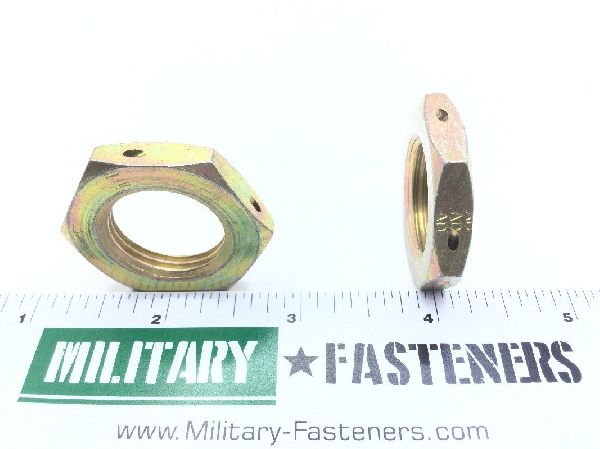

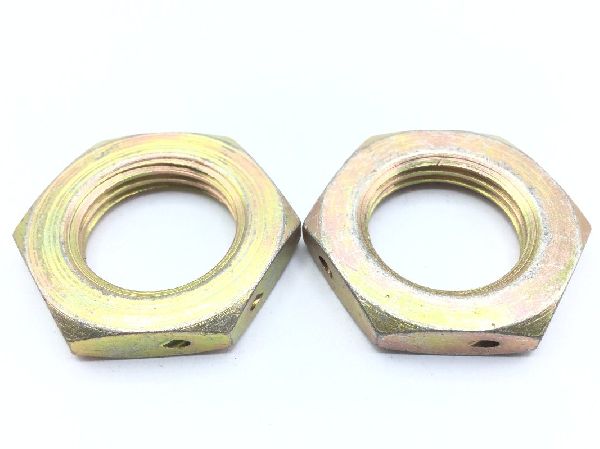

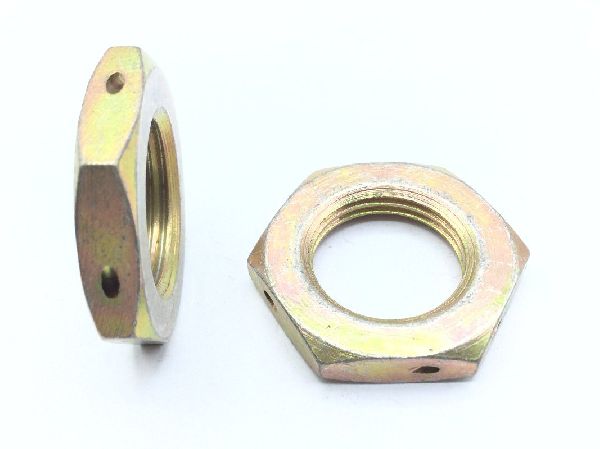

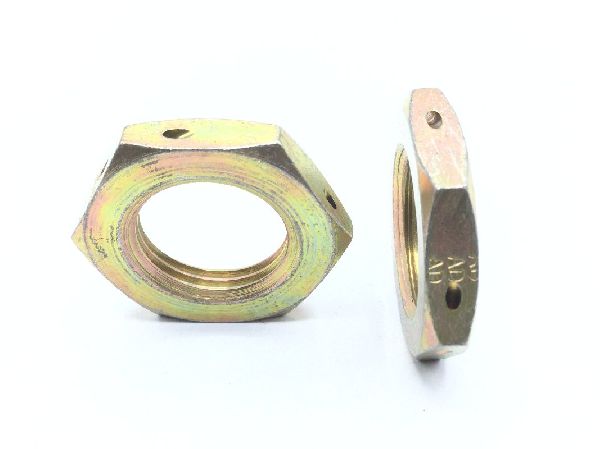

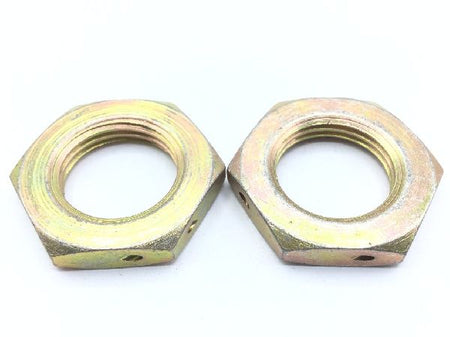

NAS1423-14 Plain Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 4130 or steel comp e4340

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.875 inches

Bearing Surface Finish: 250.0 microinches
Bearing Surface Type: Chamfered
Countersink Angle: 110.0 degrees nut
Drilled Hole Diameter: 0.070 inches
Hardness Rating: Between 34.0 rockwell c and 38.0 rockwell c
Hole Configuration Style: Configuration b
Hole Type And Quantity: 3 drilled
Material Specification: Cond c-1 or c-4 military specification 2nd material response d-4 or f-4 military specification 1st material response or mil-s-5000 cond d-1 mil-s-6758
Nut Height: Between 0.240 inches and 0.260 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 14
Width Across Flats: Between 1.296 inches and 1.315 inches
