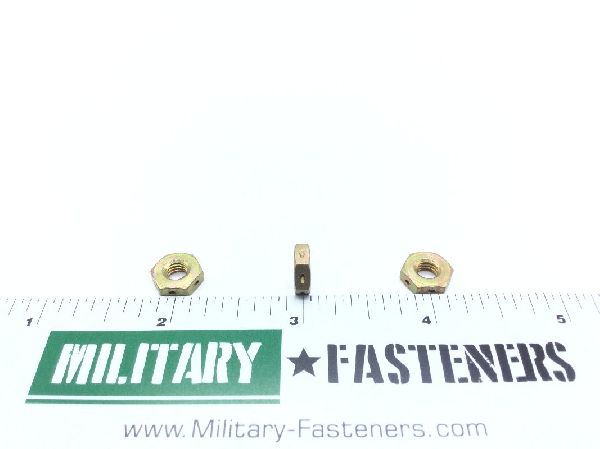

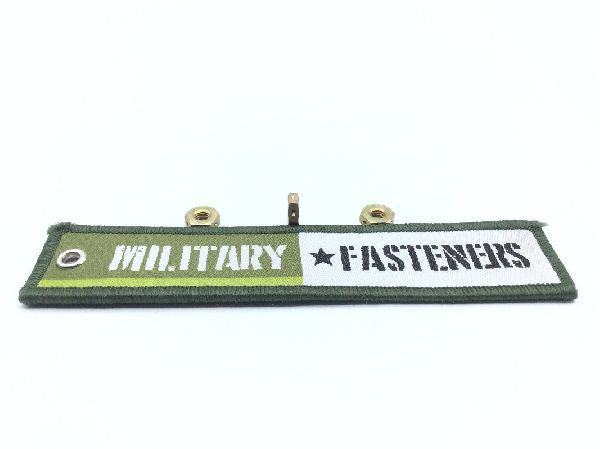

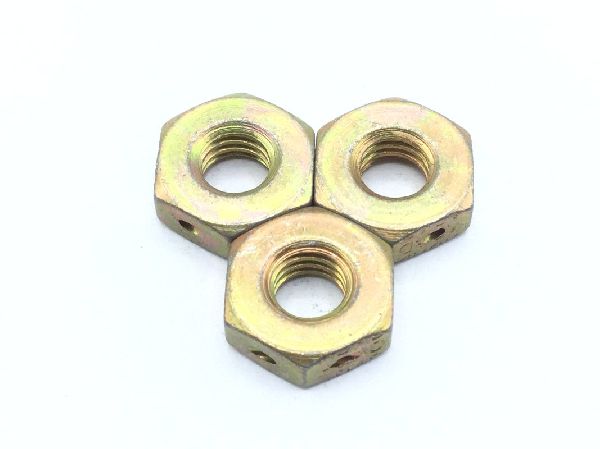

NAS1423-3 Plain Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $4.83

Units per Pack 10

Price per Pack $48.30

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $48.30

Add item to quote

Material

Steel comp 4130 or steel comp 4340

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered
Drilled Hole Diameter: Between 0.034 inches and 0.039 inches
Hardness Rating: Between 34.0 rockwell c and 38.0 rockwell c
Hole Configuration Style: Configuration b
Hole Type And Quantity: 3 drilled
Material Specification: Cond c1 or c4 military specification 2nd material response cond d1 or d4 or f4 military specification 1st material response or mil-s-5000 mil-s-6758
Nut Height: Between 0.115 inches and 0.135 inches
Nut Style: Hexagon
Specification Data: 80205-nas1423 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.365 inches and 0.377 inches
