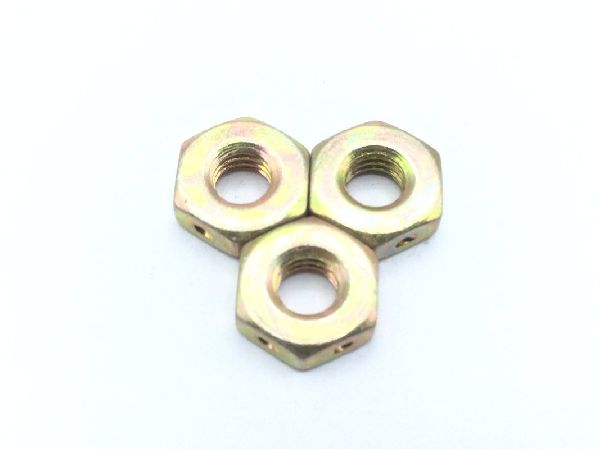

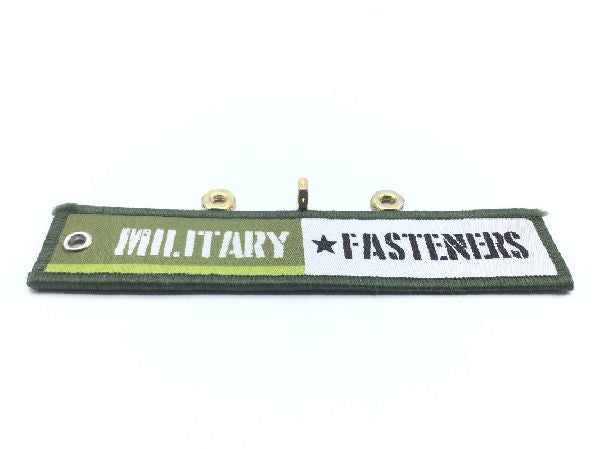

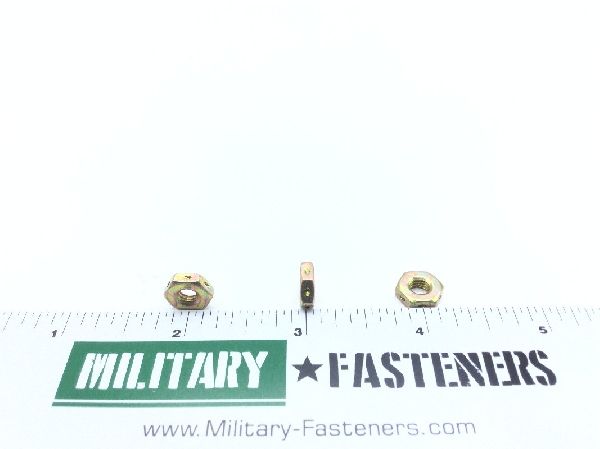

NAS1423-3LH Plain Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $4.85

Units per Pack 10

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Material

Steel comp

Surface Treatment

class 2 federal specification single treatment response tyii qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Bearing Surface Type: Chamfered
Drilled Hole Diameter: 0.035 inches
Hardness Rating: Between 34.0 rockwell c and 38.0 rockwell c
Hole Configuration Style: Configuration b
Hole Type And Quantity: 3 drilled
Material Specification: Mil-s-6758 military specification 1st material response or mil-s-5000 military specification 2nd material response
Nut Height: 0.125 inches
Nut Style: Hexagon
Specification Data: 80205-nas1423 professional/industrial association standard
Thread Direction: Left-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.365 inches and 0.377 inches
