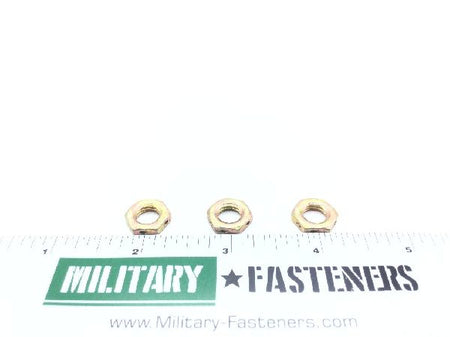

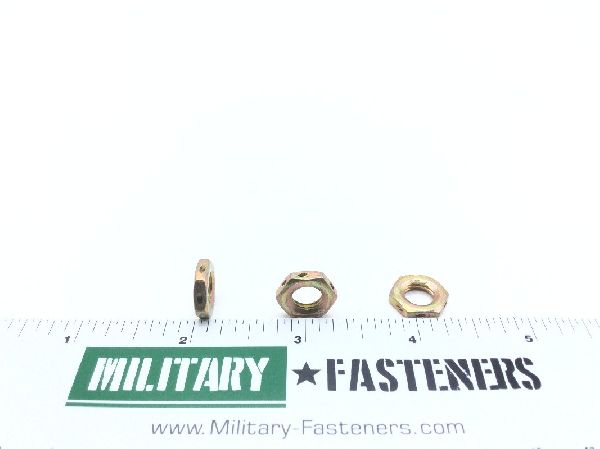

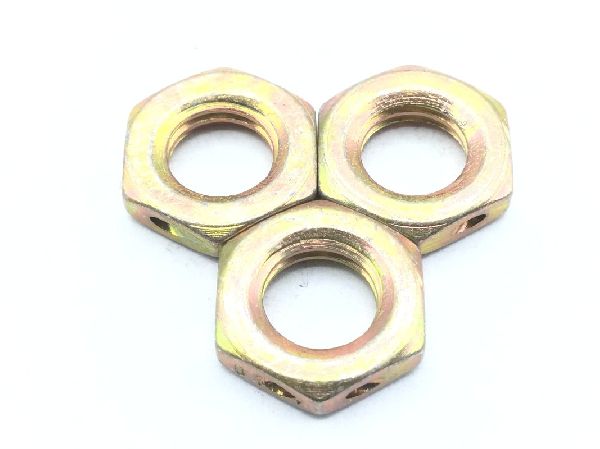

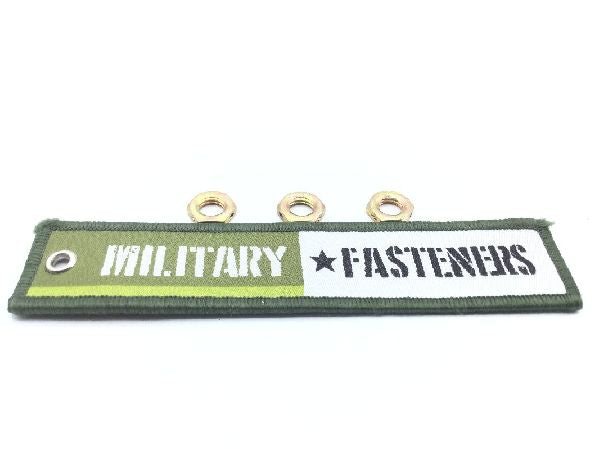

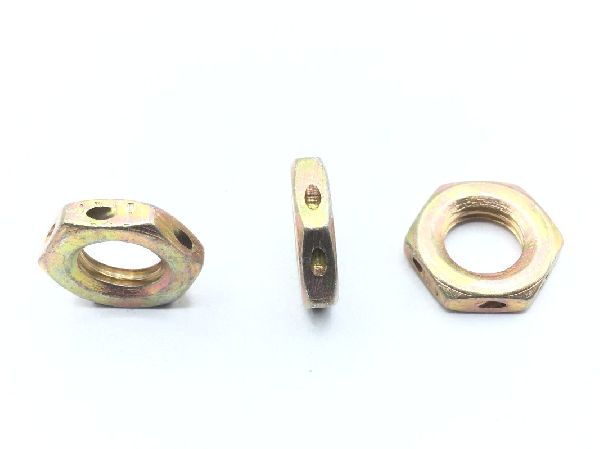

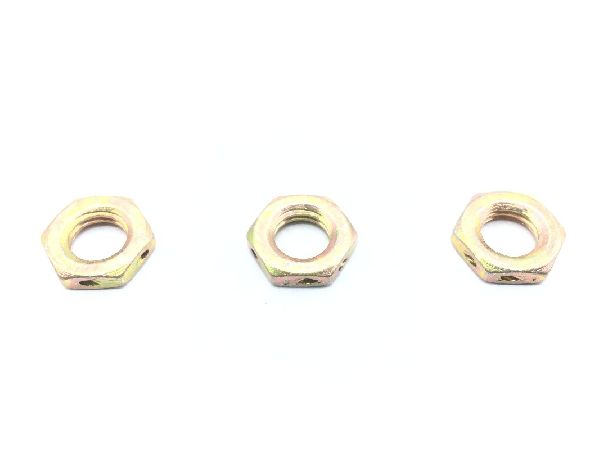

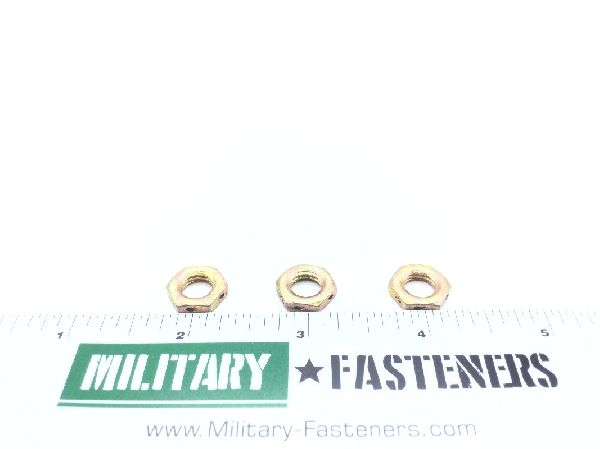

NAS1423-5 Plain Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.312 inches

Bearing Surface Finish: 250.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 110.0 degrees nut
Drilled Hole Diameter: 0.046 inches
Hardness Rating: Between 34.0 rockwell c and 38.0 rockwell c
Hole Configuration Style: Configuration b
Hole Type And Quantity: 3 drilled
Material Specification: Mil-s-6758 military specification 1st material response or mil-s-5000 military specification 2nd material response or mil-s-5000 military specification 3rd material response
Nut Height: Between 0.115 inches and 0.135 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.490 inches and 0.502 inches
