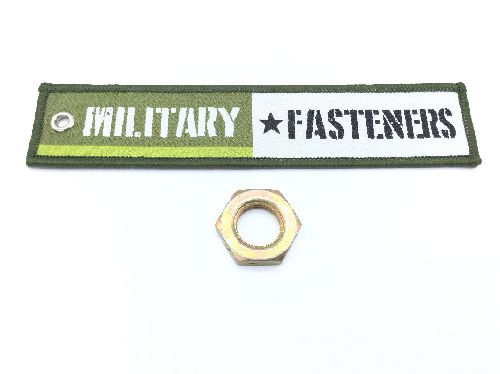

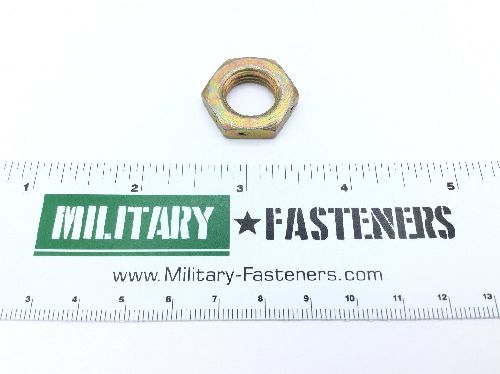

NAS1423-9 Plain Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $8.24

Units per Pack 5

Price per Pack $41.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $41.20

Add item to quote

Material

Steel comp 4130 or steel comp 4340

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.562 inches

Bearing Surface Finish: 250 microinches
Bearing Surface Type: Chamfered
Countersink Angle: 110 degrees
Drilled Hole Diameter: 0.046 inches
Hardness Rating: Between 34.0 rockwell c and 38.0 rockwell c
Hole Configuration Style: Configuration b
Hole Type And Quantity: 3 drilled
Material Specification: Mil-s-6758 military specification 1st material response or mil-s-5000 cond c1 military specification 2nd material response or mil-s-5000 cond c4 military specification 2nd material response
Nut Height: Between 0.193 inches and 0.213 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
Width Across Flats: Between 0.863 inches and 0.877 inches
