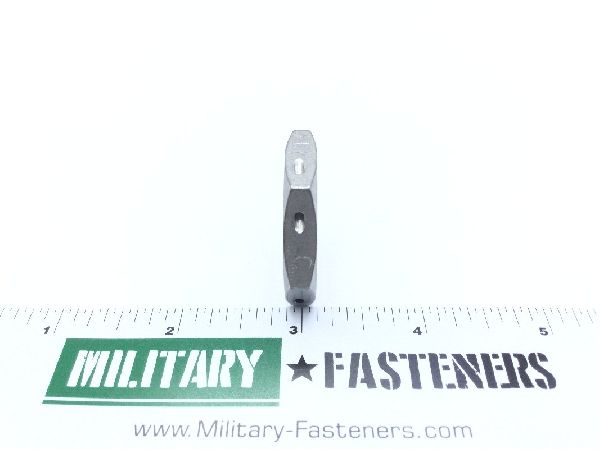

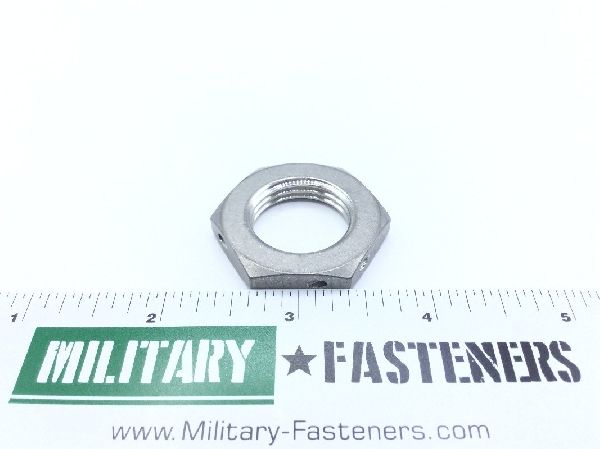

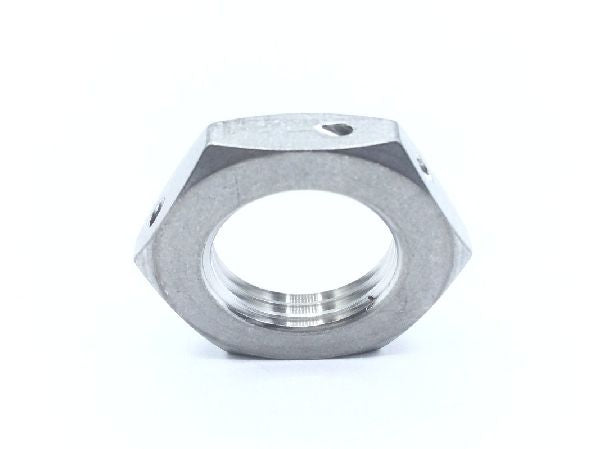

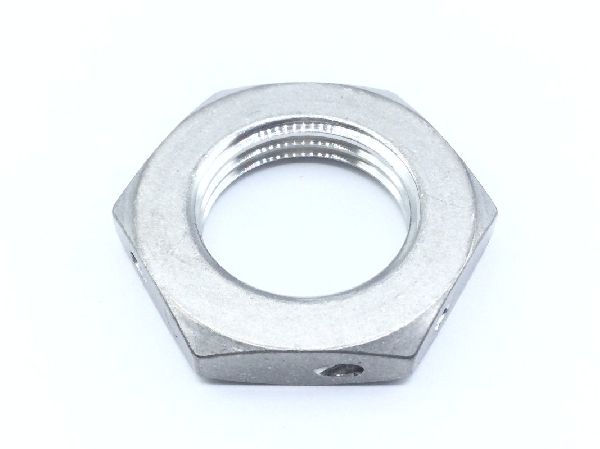

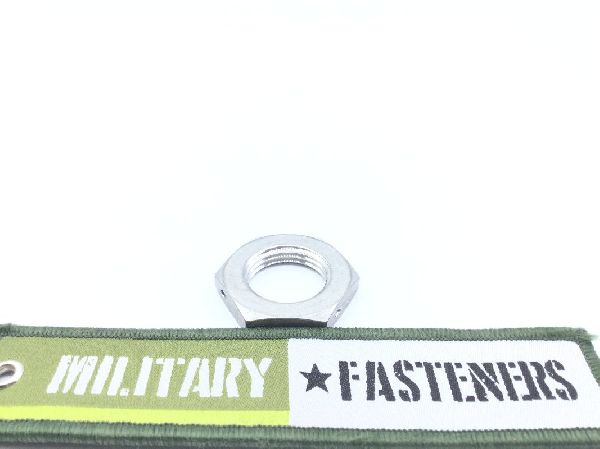

NAS1423C14 Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $110.81

Units per Pack 1

Price per Pack $110.81

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $110.81

Add item to quote

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.875 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered
Countersink Angle: 110.0 degrees
Drilled Hole Diameter: Between 0.069 inches and 0.074 inches
Hole Configuration Style: Configuration b
Hole Type And Quantity: 3 drilled
Material Specification: Ams 5525 assn standard single material response or ams 5732 assn standard single material response or ams 5737 assn standard single material response
Nondefinitive Specification/std Data: 2 type
Nut Height: 0.250 inches
Nut Style: Hexagon
Specification Data: 80205-nas1423 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 14
Width Across Flats: Between 1.296 inches and 1.315 inches
