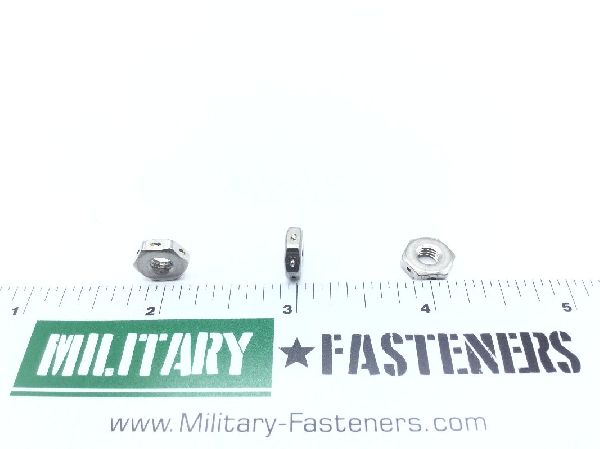

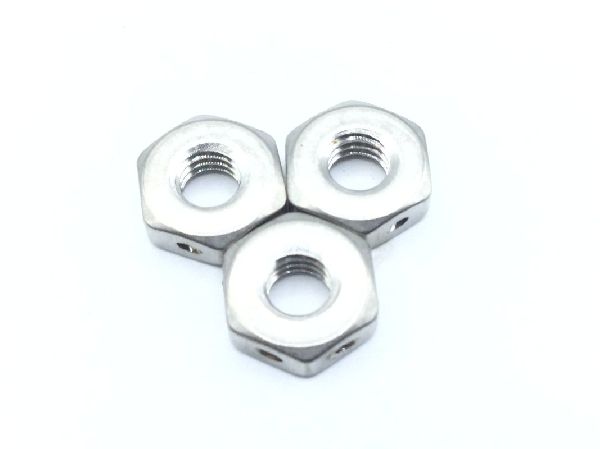

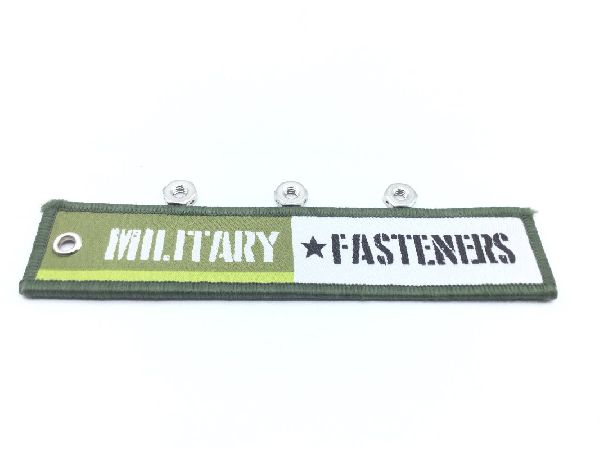

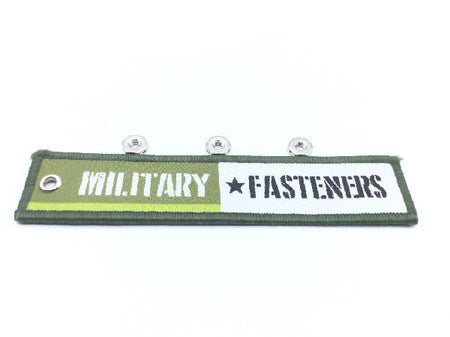

NAS1423C3 Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $13.02

Units per Pack 5

Price per Pack $65.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $65.10

Add item to quote

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered
Drilled Hole Diameter: Between 0.034 inches and 0.039 inches
Hole Configuration Style: Configuration b
Hole Type And Quantity: 3 drilled
Material Specification: Ams 5525 assn standard single material response or ams 5732 assn standard single material response or ams 5737 assn standard single material response
Nut Height: Between 0.115 inches and 0.135 inches
Nut Style: Hexagon
Specification Data: 80205-nas1423 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.365 inches and 0.377 inches
