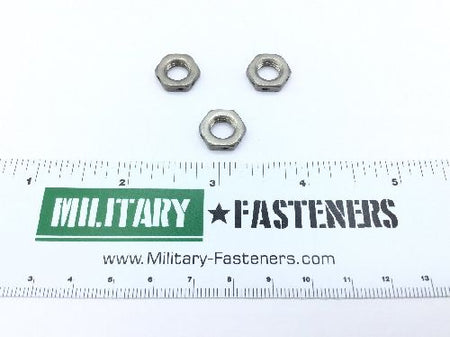

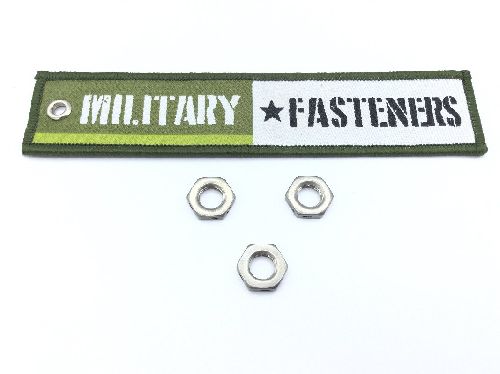

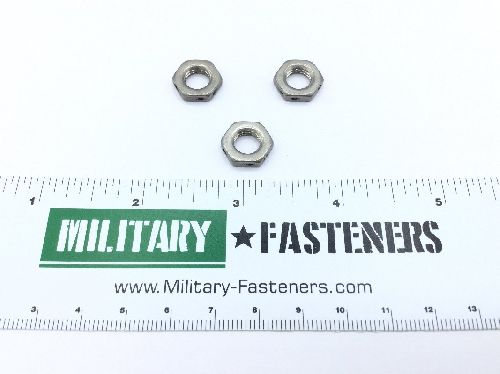

NAS1423C5 Plain Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Iron alloy 660

Surface Treatment

Qq-p-35 military specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.312 inches

Bearing Surface Type: Flat
Drilled Hole Diameter: Between 0.045 inches and 0.050 inches
Hole Configuration Style: Configuration b
Hole Type And Quantity: 3 drilled
Material Specification: Ams 5525 assn standard single material response or ams 5732 assn standard single material response or ams 5737 assn standard single material response
Nut Height: 0.125 inches
Nut Style: Hexagon
Specification Data: 80205-nas1423 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.490 inches and 0.502 inches
