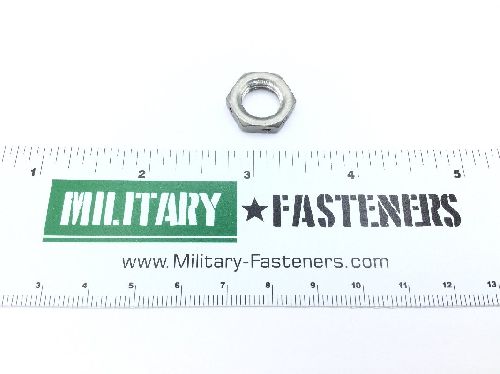

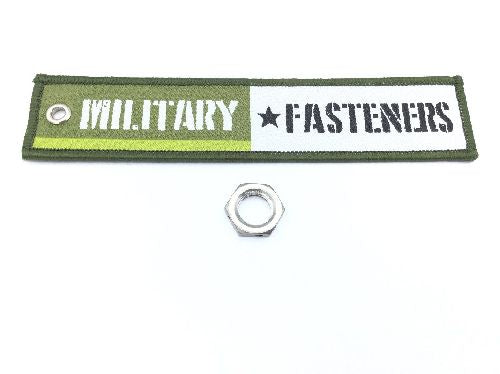

NAS1423C7 Plain Hexagon Nut

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered
Countersink Angle: 109.0 degrees nut and 111.0 degrees nut
Drilled Hole Diameter: Between 0.045 inches and 0.050 inches
Hole Configuration Style: Configuration b
Hole Type And Quantity: 3 drilled
Nut Height: Between 0.146 inches and 0.166 inches
Nut Style: Hexagon
Special Features: 150000 psi min tensile strength
Specification Data: 80205-nas1423 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.615 inches and 0.627 inches
