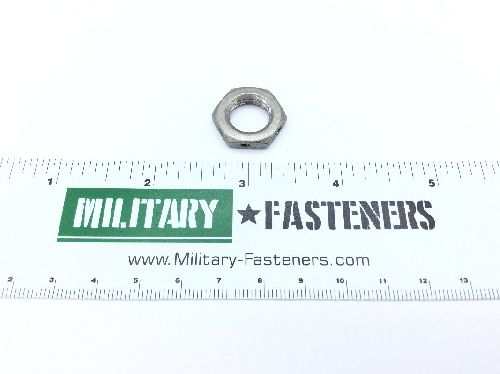

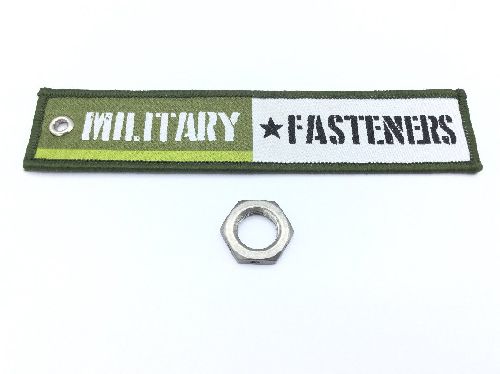

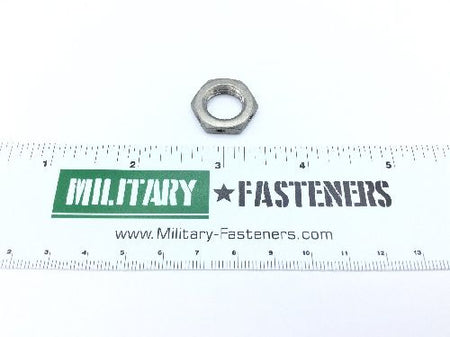

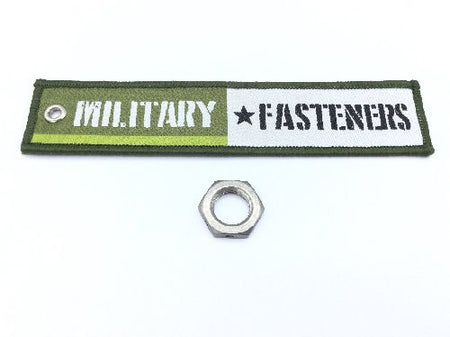

NAS1423C8 Misc Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $26.25

Units per Pack 2

Price per Pack $52.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $52.50

Add item to quote

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.500 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered
Countersink Angle: 109.0 degrees nut and 111.0 degrees nut
Drilled Hole Diameter: Between 0.045 inches and 0.050 inches
Hole Configuration Style: Configuration b
Hole Type And Quantity: 3 drilled
Nut Height: Between 0.146 inches and 0.166 inches
Nut Style: Hexagon
Specification Data: 80205-nas1423 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.740 inches and 0.752 inches
