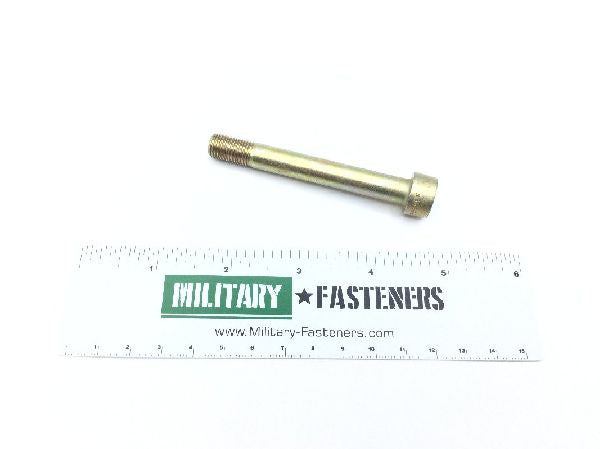

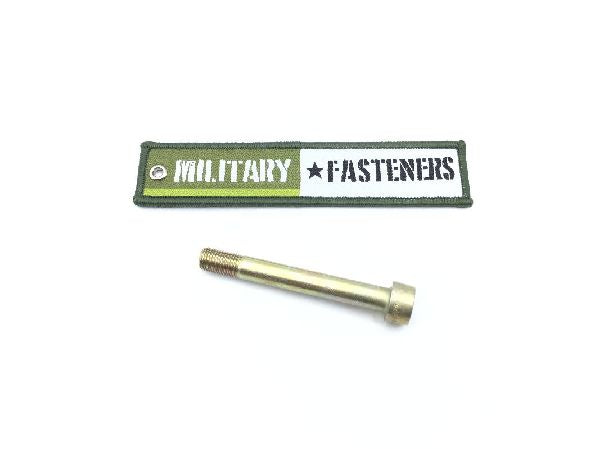

NAS146-47 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $41.51

Units per Pack 1

Price per Pack $41.51

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $41.51

Add item to quote

Head Style

Bevel-conical

Material

Steel

Thread Class

3a

Fastener Length: Between 2.173 inches and 2.203 inches
Head Height: 0.343 inches
Internal Drive Style: Hexagon
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.663 inches and 0.713 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Across Flats: 0.583 inches
Head Diameter: Between 0.615 inches and 0.625 inches
