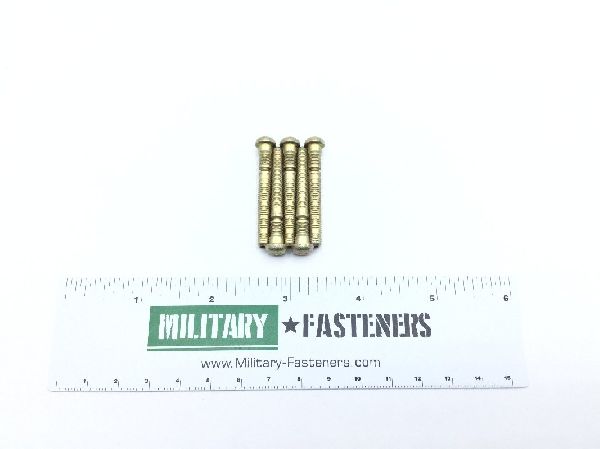

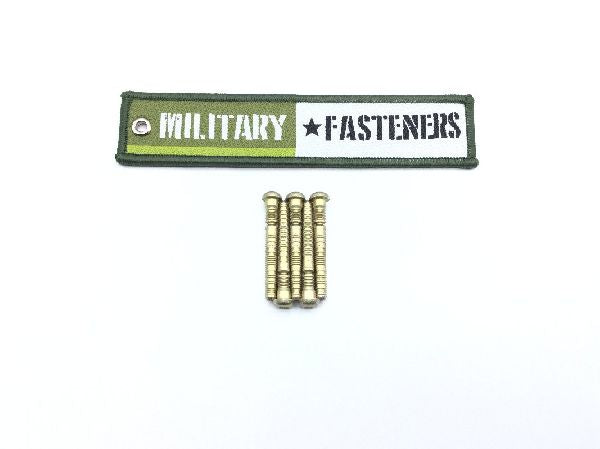

NAS1466-02A Pin-Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $2.70

Units per Pack 25

Price per Pack $67.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $67.50

Add item to quote

Head Style

Err-090

Material

Steel comp

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Grip Length: Between 0.095 inches and 0.156 inches
Hardness Rating: 77.0 rockwell superficial 15-n and 82.0 rockwell superficial 15-n
Head Height: Between 0.099 inches and 0.111 inches
Head Major Diameter: Between 0.297 inches and 0.327 inches
Material Specification: Astm a547 assn standard all material responses
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.2010 inches and 0.2025 inches
Shank Style: Straight
Shear Strength: 95000 single pounds per square inch
Specification Data: 80205-nas1466 professional/industrial association standard
Lubrication: Cetyl alcohol
