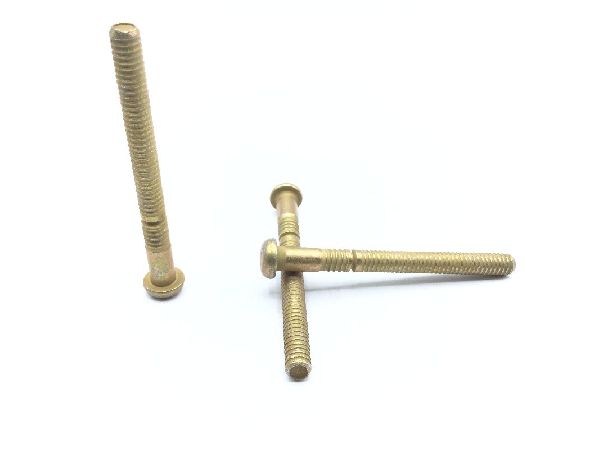

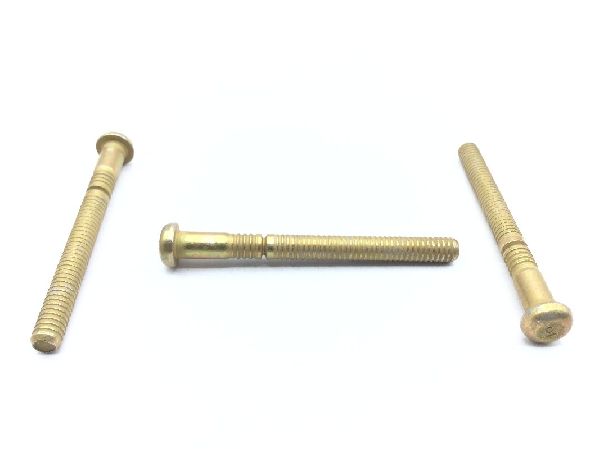

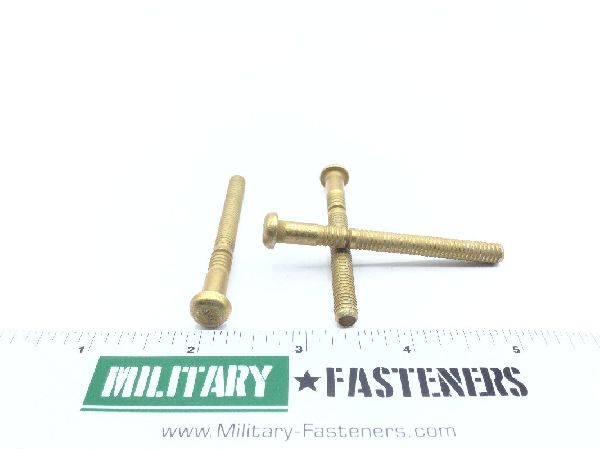

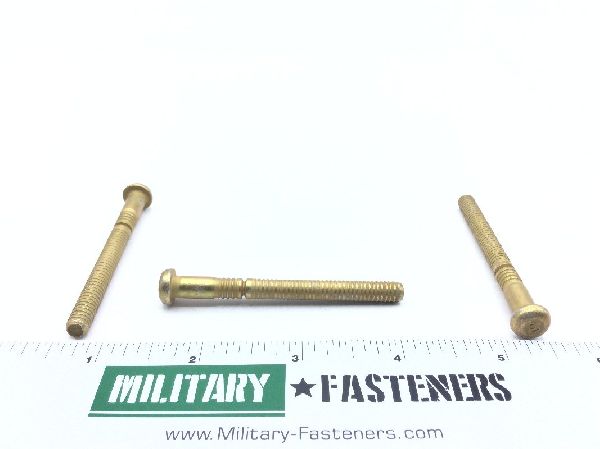

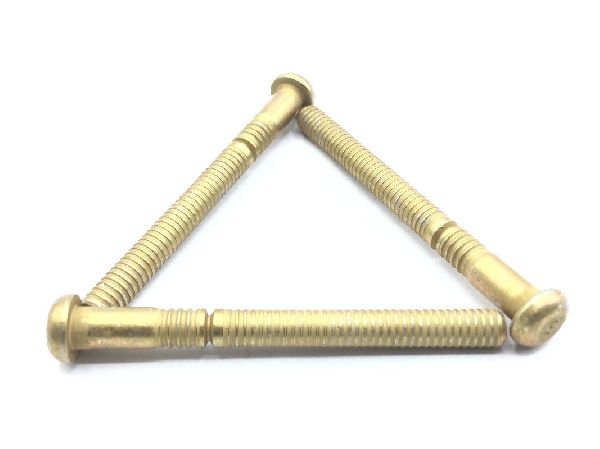

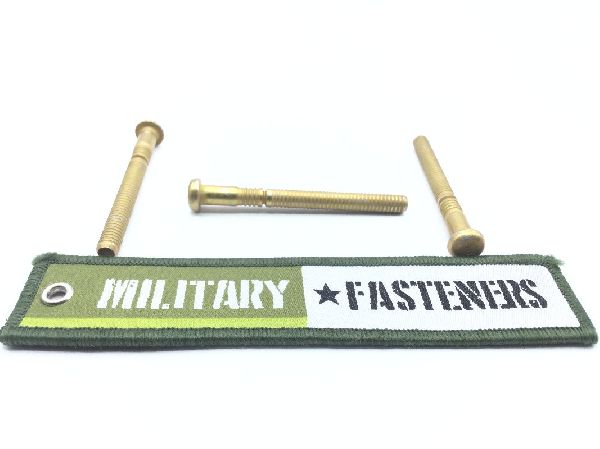

NAS1468-07 Pin-Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $1.94

Units per Pack 25

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Straight pan

Material

Steel comp 4140 or steel comp 4340 or steel comp 8740 or steel comp 4037

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Fastener Length: Between 2.500 inches and 2.700 inches
Features: Casehardened
Features Provided: Casehardened
Grip Length: Between 0.407 inches and 0.469 inches
Hardness Rating: 37.0 rockwell c and 41.0 rockwell c
Head Height: Between 0.128 inches and 0.147 inches
Head Major Diameter: Between 0.390 inches and 0.430 inches
Material Specification: Qq-w-405 federal specification all material responses
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.248 inches and 0.249 inches
Shank Style: Multiple grooved pin-rivet
Specification Data: 80205-was1468 professional/industrial association standard
