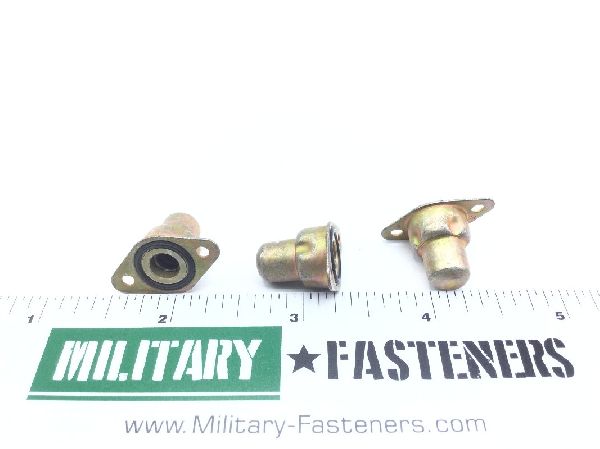

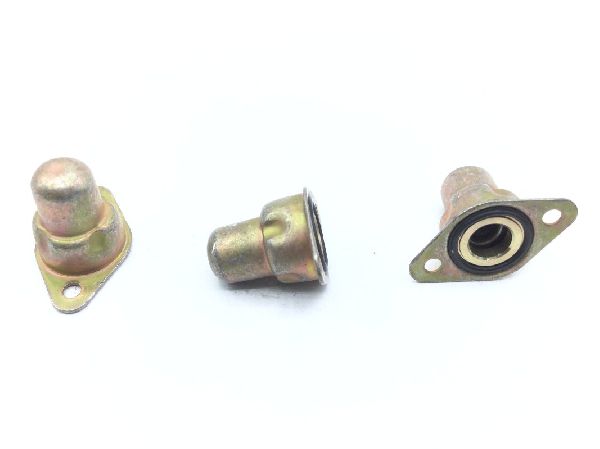

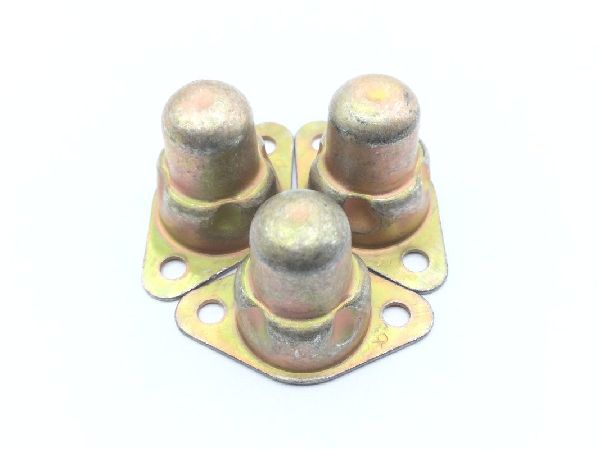

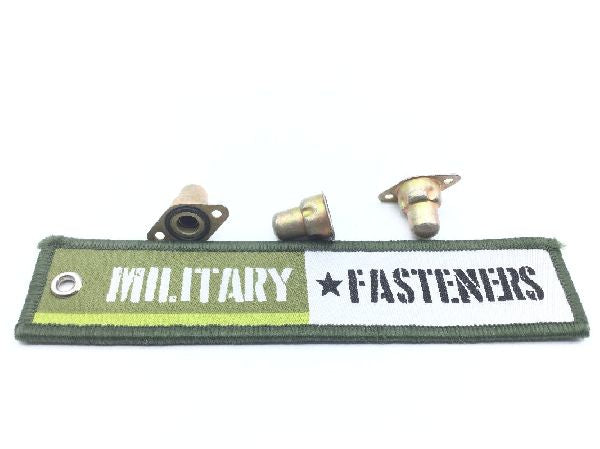

NAS1473A08 Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel nut

Surface Treatment

Class3 federal specification single treatment response shell qq-p-416 type2

Thread Class

Thread Series

Unjc

Thread Size

0.164 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.686 inches and 0.690 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.339 inches and 0.349 inches
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: 60.0 shore durometer a
Locking Feature: Prevailing torque all metal design
Material Specification: Mil-r-6855 class 1 grade 60 military specification single material response seal
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: 0.313 inches
Nut Length: 0.989 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Overall Height: 0.640 inches
Plate Thickness: 0.030 inches
Plate Width: 0.568 inches
Specification Data: 80205-nas1473 professional/industrial association standard
Tempurature Rating: Between -65.0 degrees fahrenheit and 225.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
