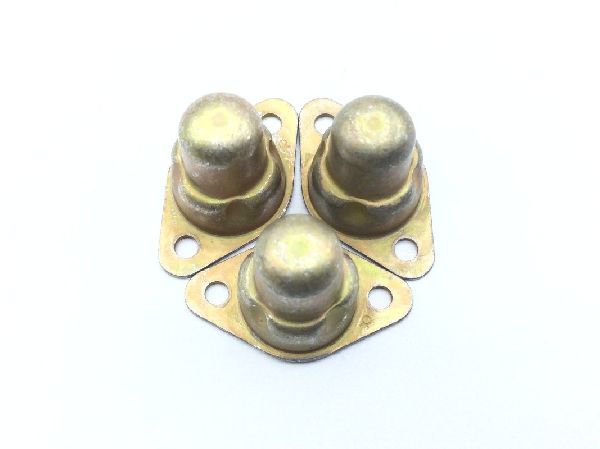

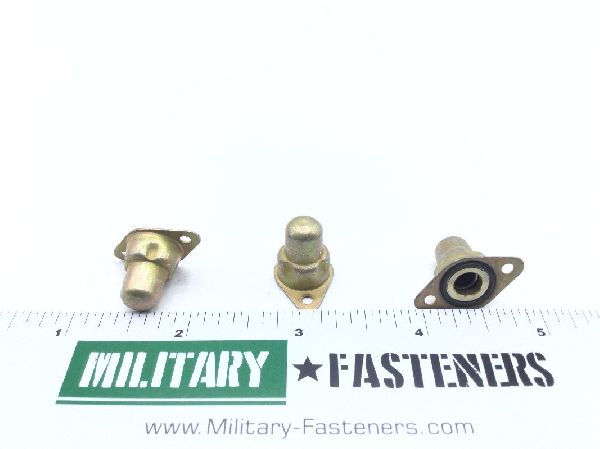

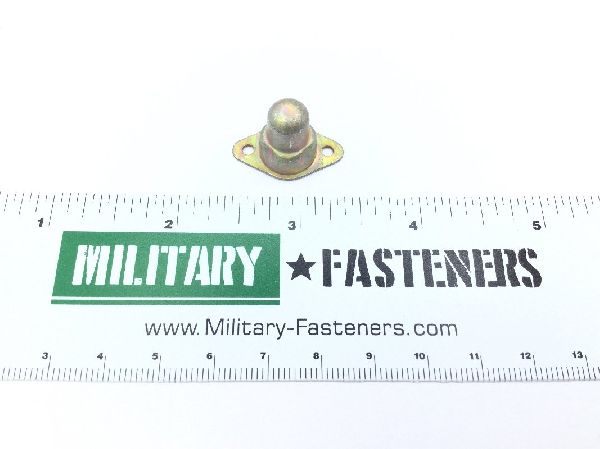

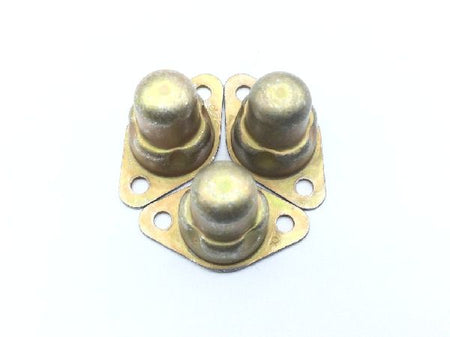

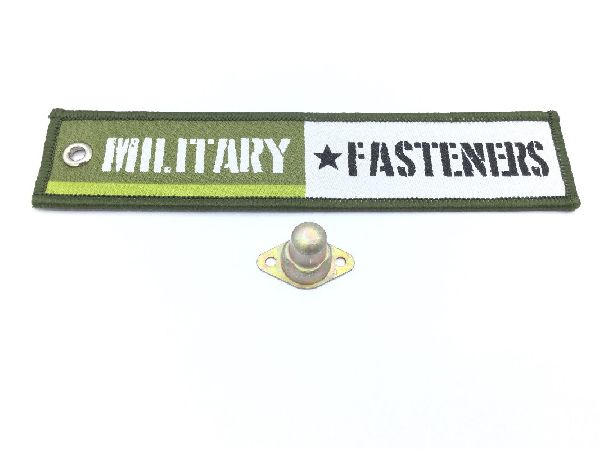

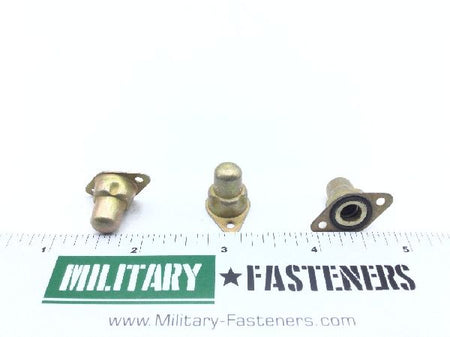

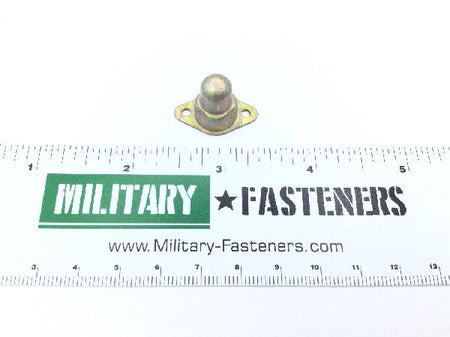

NAS1473A3 Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel nut

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.19 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.686 inches and 0.69 inches
Counterbore Diameter: 0.229 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.344 inches and 0.349 inches
Features: Floating nut
Features Provided: Floating nut
Furnished Items: Preformed packing
Locking Feature: Prevailing torque all metal design
Material Specification: Mil-n-25027 military specification single material response shell
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Counterbore Depth: 0.125 inches base
Nut Height: 0.313 inches
Nut Length: 0.989 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Overall Height: 0.640 inches
Plate Thickness: 0.085 inches
Plate Width: 0.568 inches
Special Features: Black seal 0.03 in. max axial float; 50.0 psig max rated pressure 0.020 in. min radial float
Special Test Features: Maxminum locking torque 3 times the value stated in mil-n-25027
Specification Data: 80205-nas1473 professional/industrial association standard
Supplementary Features: No qpl shall be establsihed
Tempurature Rating: 225 degrees fahrenheit
Test Data Document: Etc.).
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
