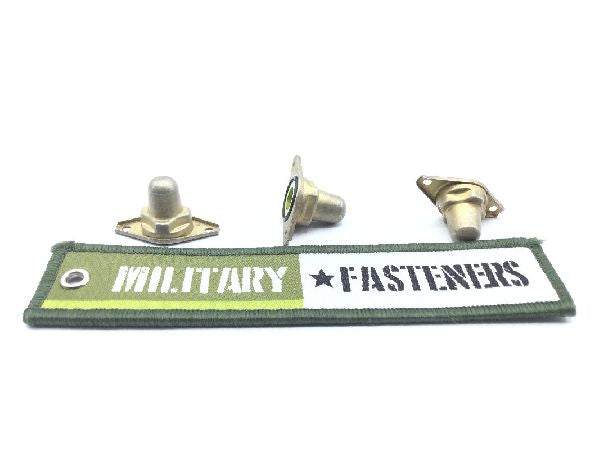

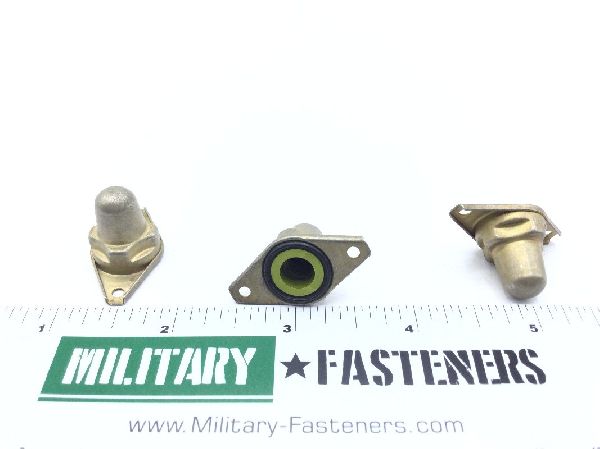

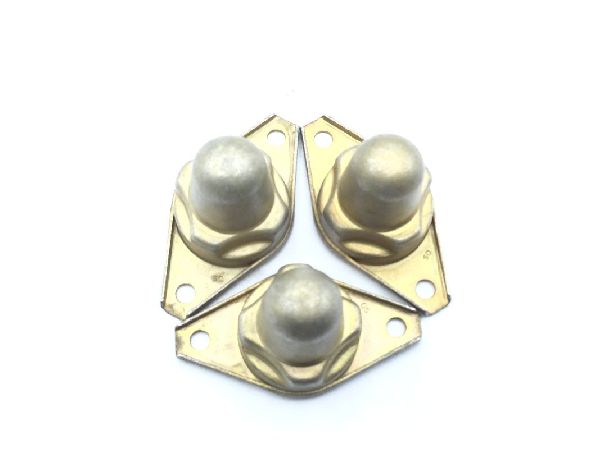

NAS1473A4 Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel shell

Surface Treatment

Class 3 federal specification single treatment response shell type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.250 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.998 inches and 1.002 inches
Counterbore Diameter: 0.289 inches nut
Distance From Aperture Center To Mounting Hole Center: Between 0.495 inches and 0.505 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Grade 60 military specification single material response seal class 1 mil-s-6855
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Counterbore Depth: 0.135 inches nut
Nut Height: 0.372 inches
Nut Length: 1.296 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Overall Height: 0.755 inches
Plate Thickness: 0.030 inches
Plate Width: 0.668 inches
Specification Data: 80205-nas1473 professional/industrial association standard
Tempurature Rating: 225.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
