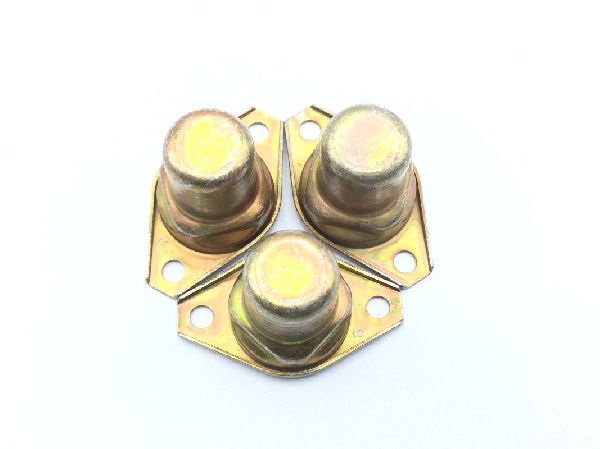

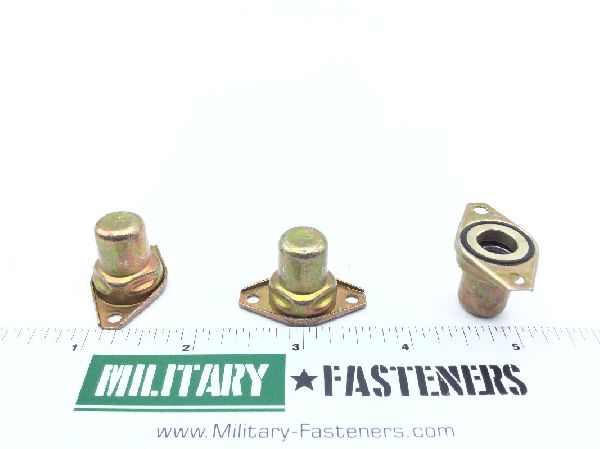

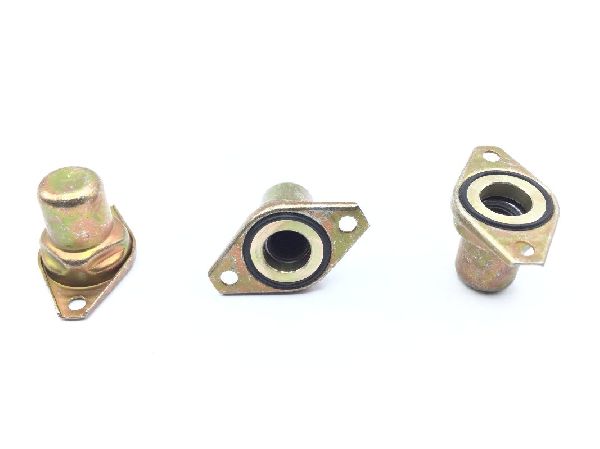

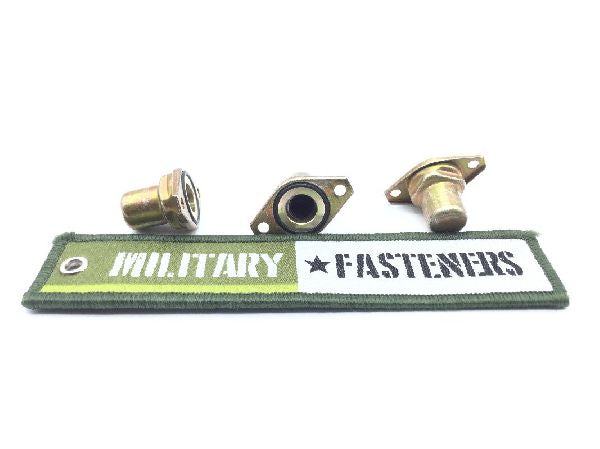

NAS1473A5 Self-locking Nutplate

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Center To Center Distance Between Mounting Holes Along Length: Between 0.998 inches and 1.002 inches
Counterbore Diameter: 0.352 inches base
Distance From Aperture Center To Mounting Hole Center: Between 0.495 inches and 0.505 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Cl 1 military specification single material response seal mil-r-6855
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.130 inches and 0.135 inches
Nut Counterbore Depth: 0.135 inches base
Nut Height: 0.410 inches
Nut Length: 1.280 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Overall Height: 0.798 inches
Plate Thickness: 0.018 inches
Plate Width: 0.762 inches
Tempurature Rating: Between -80.0 degrees fahrenheit and 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Lubrication: Dry film lubricant
