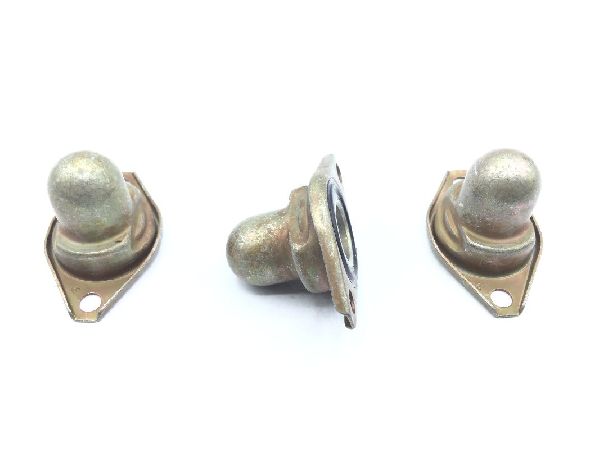

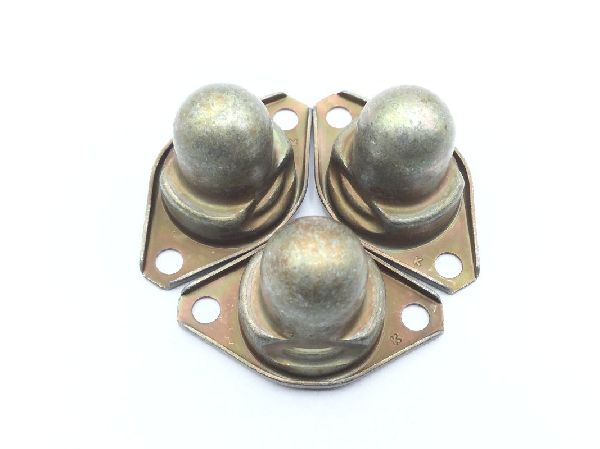

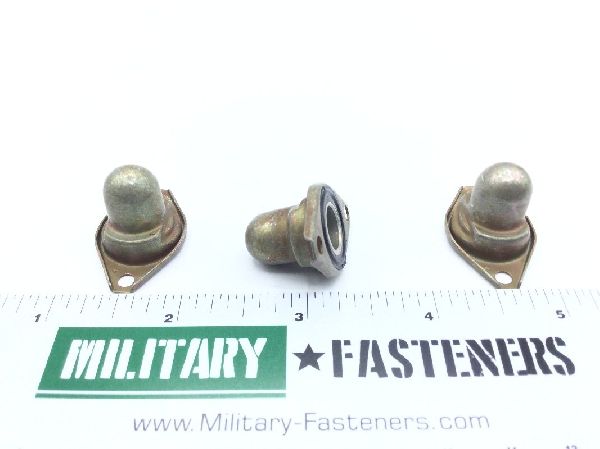

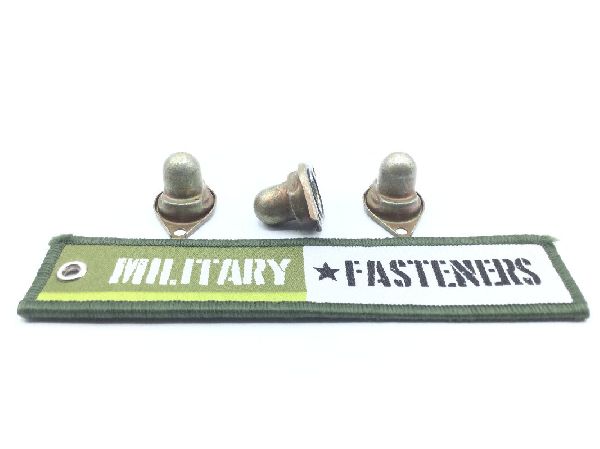

NAS1473A5K Self-Locking Nutplate

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Center To Center Distance Between Mounting Holes Along Length: 1.00 inches
Distance From Aperture Center To Mounting Hole Center: 0.50 inches
Features: Floating nut
Features Provided: Floating nut
Material Specification: Grade 60 military specification single material response seal type 1 mil-r-6855
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: 0.13 inches
Nut Height: 0.41 inches
Nut Length: 1.298 inches
Nut Style: Plate (floating)
Plate Thickness: 0.03 inches
Plate Width: 0.777 inches
Special Features: Dry film lubricant
Tempurature Rating: Between -65 degrees fahrenheit and 225 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
