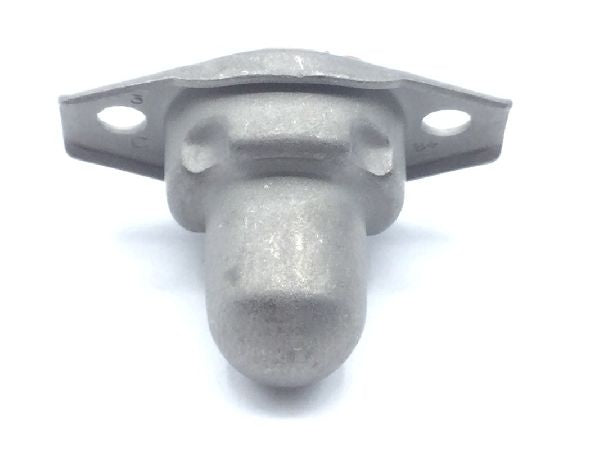

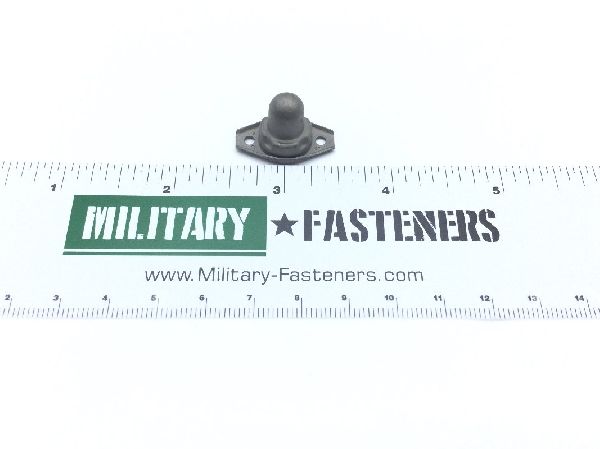

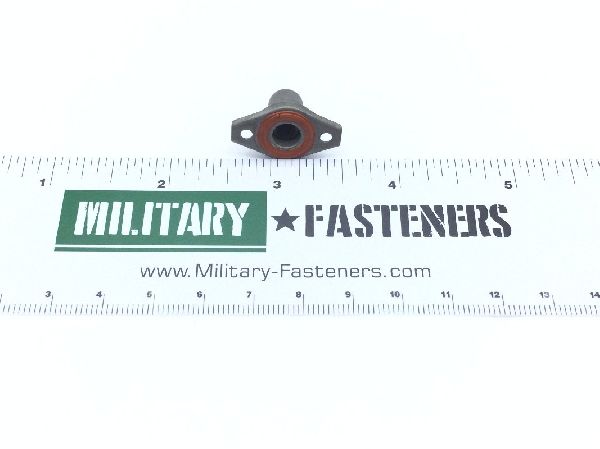

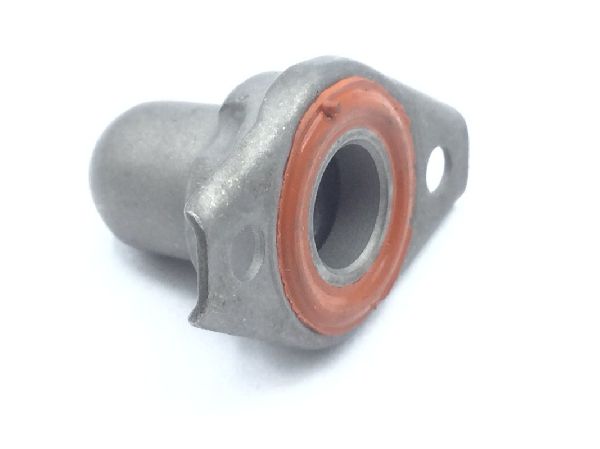

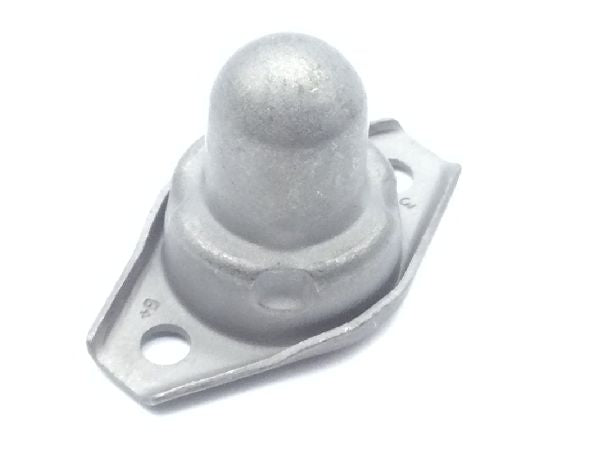

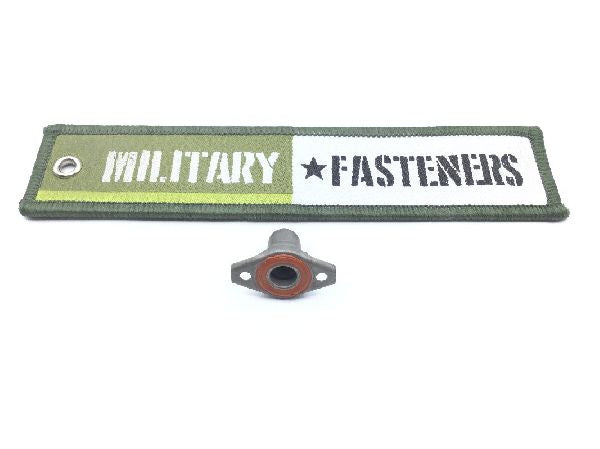

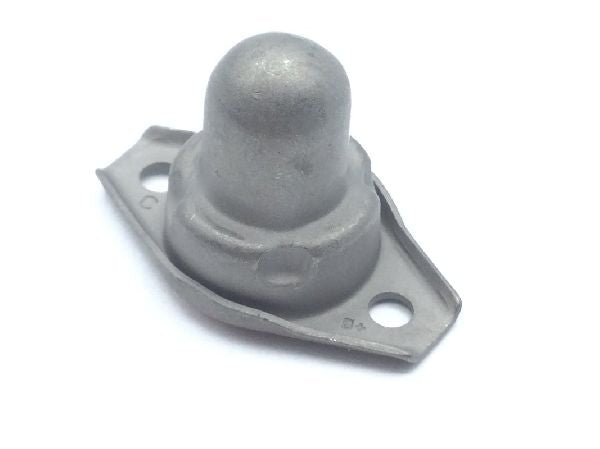

NAS1473C08 Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $15.94

Units per Pack 5

Price per Pack $79.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $79.70

Add item to quote

Material

Iron alloy 660 washer

Surface Treatment

Qq-p-35 federal specification single treatment response washer

Thread Class

Thread Series

Unjc

Thread Size

0.164 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.686 inches and 0.690 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.339 inches and 0.349 inches
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5732 assn standard single material response washer or ams 5525 assn standard single material response washer
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.102 inches
Nut Height: 0.313 inches
Nut Length: 0.989 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Overall Height: 0.640 inches
Plate Thickness: 0.030 inches
Plate Width: 0.568 inches
Precious Material: Silver
Precious Material And Location: Nut silver
Specification Data: 80205-nas1473 professional/industrial association standard
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
