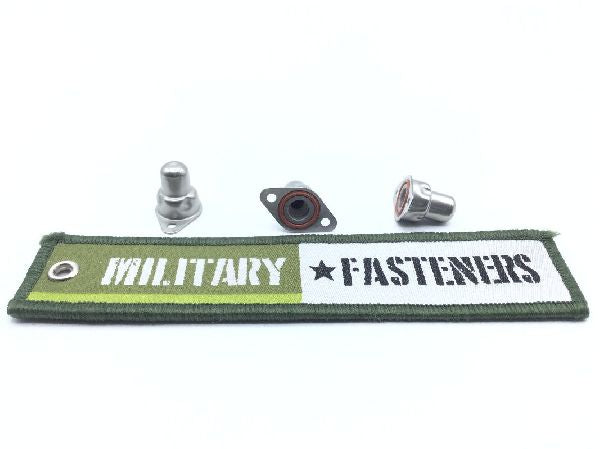

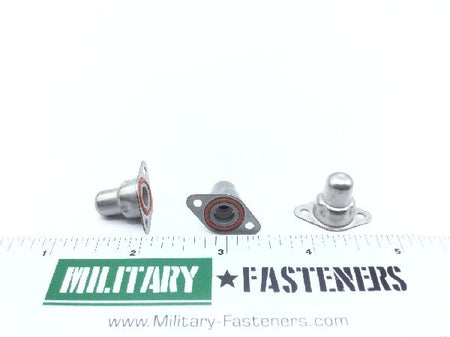

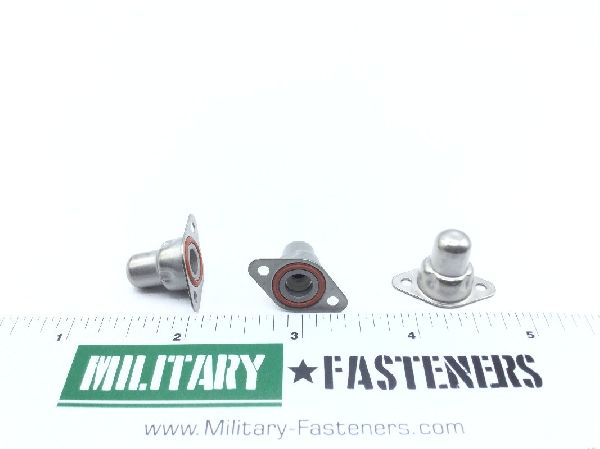

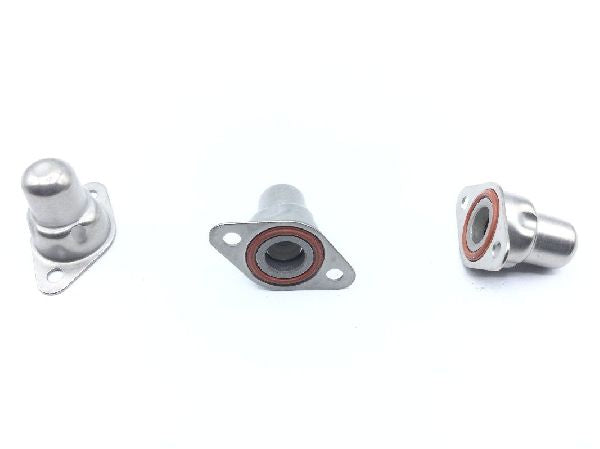

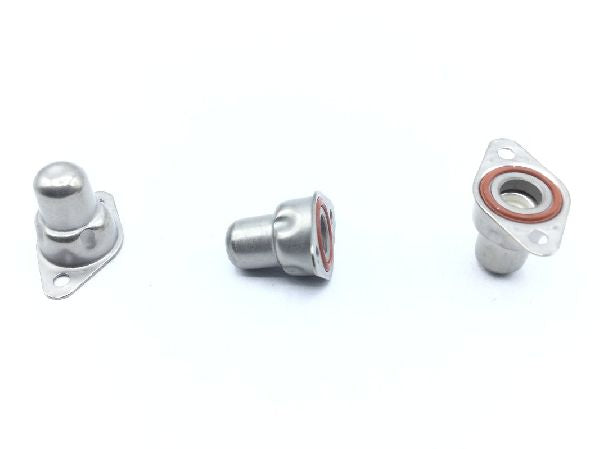

NAS1473C3 Self-Locking Nutplate

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Center To Center Distance Between Mounting Holes Along Length: Between 0.686 inches and 0.690 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.339 inches and 0.349 inches
Locking Feature: Prevailing torque all metal design
Material Specification: Ams5732 assn standard 1st material response washer or ams 5525 assn standard 2nd material response washer
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: 0.313 inches
Nut Length: 0.989 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Overall Height: 0.640 inches
Plate Thickness: 0.030 inches
Plate Width: 0.568 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
