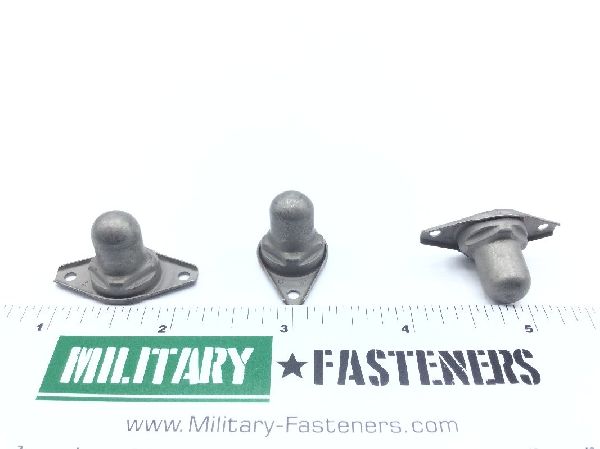

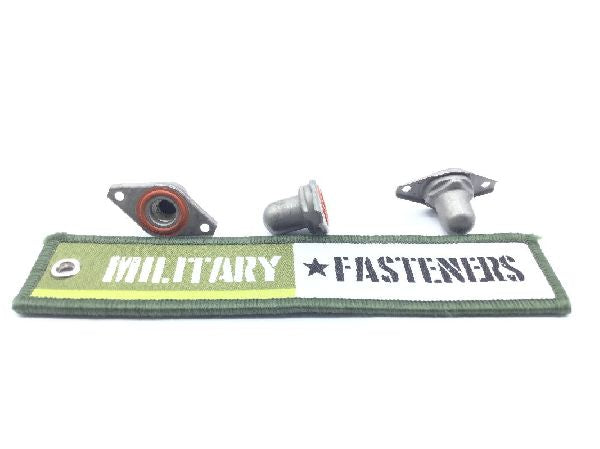

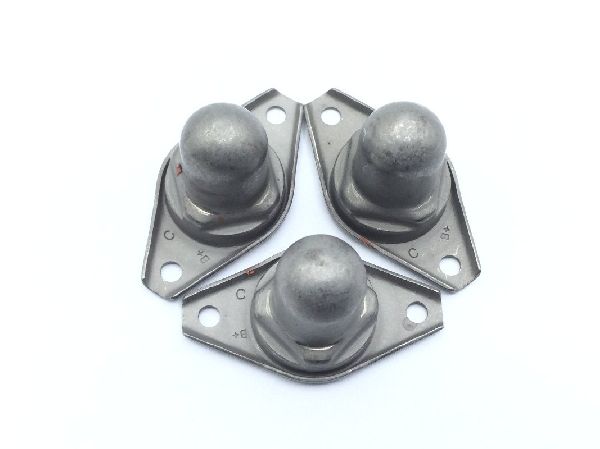

NAS1473C4 Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $16.56

Units per Pack 5

Price per Pack $82.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $82.80

Add item to quote

Material

Iron alloy 660 nut

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.250 inches

Center To Center Distance Between Mounting Holes Along Length: 1.00 inches
Counterbore Diameter: 0.289 inches
Distance From Aperture Center To Mounting Hole Center: 0.50 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 3304 assn standard single material response seal
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Counterbore Depth: 0.135 inches
Nut Height: 0.372 inches
Nut Length: 1.296 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Overall Height: 0.755 inches
Plate Thickness: 0.03 inches
Plate Width: 0.668 inches
Specification Data: 80205-nas1474 professional/industrial association standard
Tempurature Rating: 450 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
