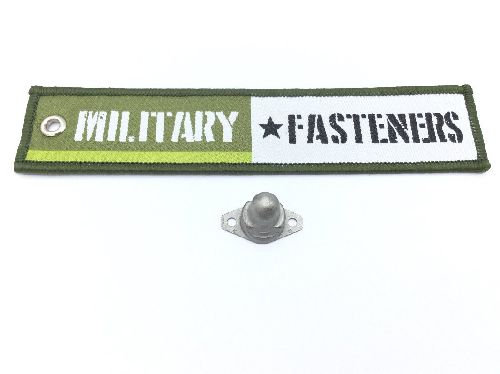

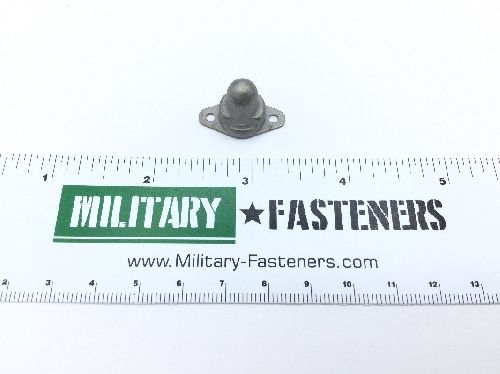

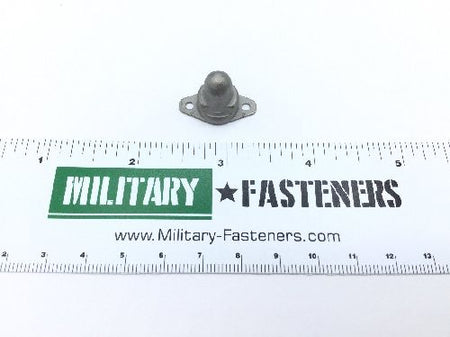

NAS1473F3 Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Rubber fluorosilicone class fq seal

Surface Treatment

Qq-p-35 federal specification single treatment response nut

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.686 inches and 0.690 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.339 inches and 0.349 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Mil-r-25988 military specification single material response seal
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: 0.313 inches
Nut Length: 0.989 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Overall Height: 0.640 inches
Plate Thickness: 0.030 inches
Plate Width: 0.568 inches
Specification Data: 80205-nas1473 professional/industrial association standard
Tempurature Rating: 350.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
