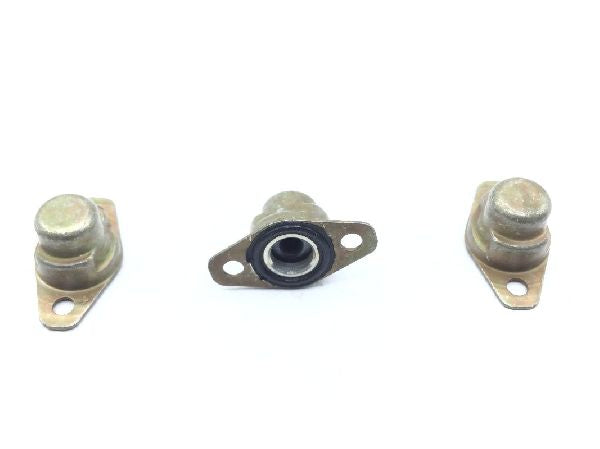

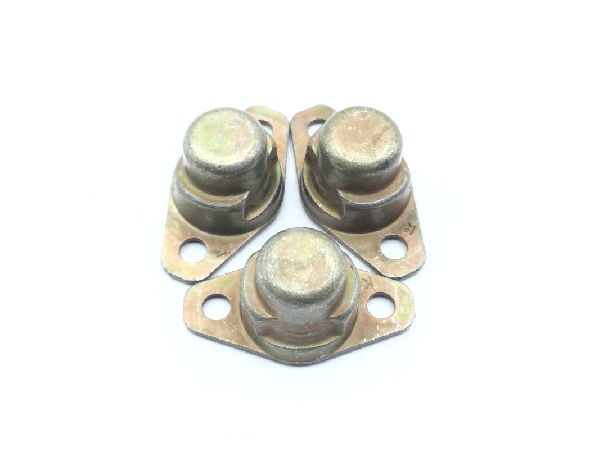

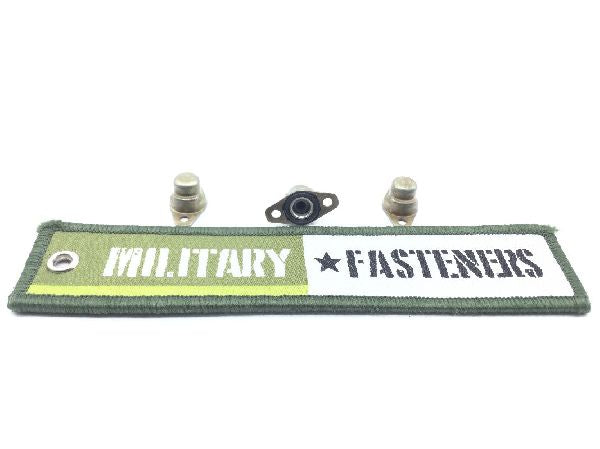

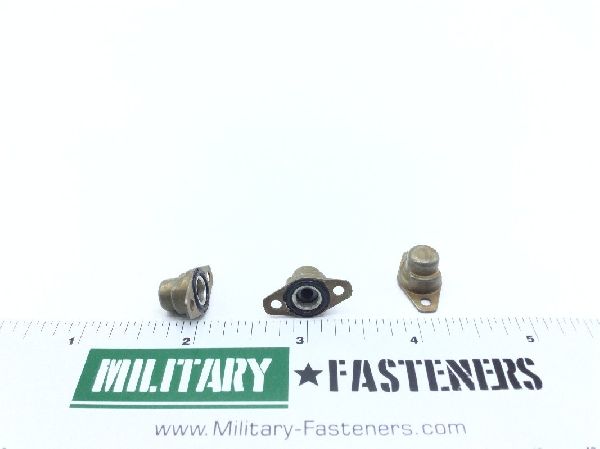

NAS1474A04 Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Rubber synthetic seal

Surface Treatment

Qq-p-416 federal specification single treatment response nut

Thread Class

Thread Series

Unjc

Thread Size

0.112 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.588 inches and 0.592 inches
Counterbore Diameter: 0.142 inches nut
Distance From Aperture Center To Mounting Hole Center: Between 0.290 inches and 0.300 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Grade 60 military specification single material response seal class 1 mil-s-6855
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: 0.098 inches
Nut Counterbore Depth: 0.070 inches nut
Nut Height: 0.204 inches
Nut Length: 0.840 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Overall Height: 0.405 inches
Plate Thickness: 0.030 inches
Plate Width: 0.443 inches
Specification Data: 80205-nas1474 professional/industrial association standard
Tempurature Rating: Between -65.0 degrees fahrenheit and 225.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 40
Lubrication: Dry film lubricant
