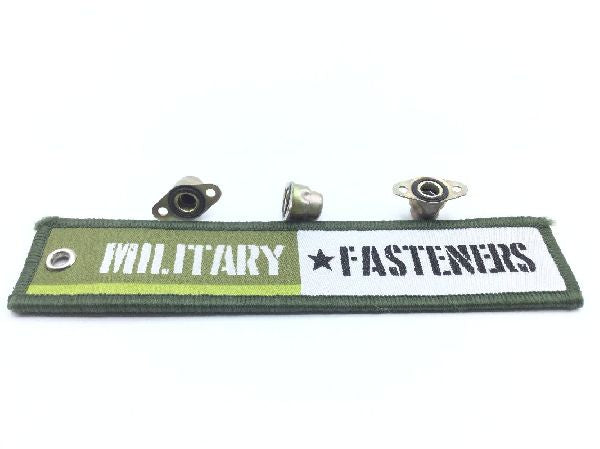

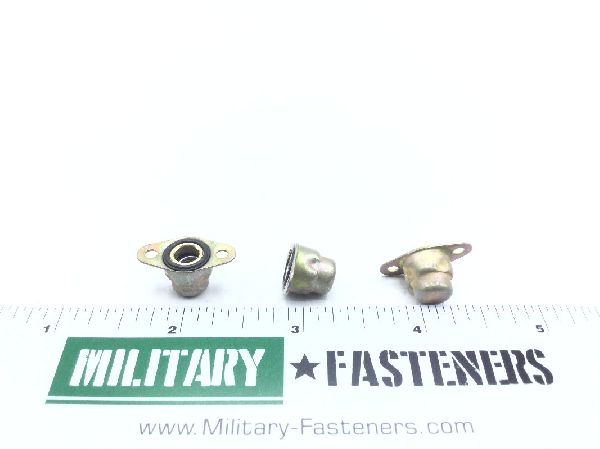

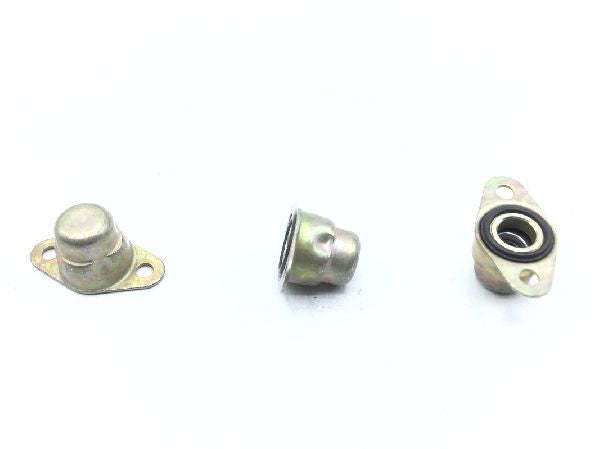

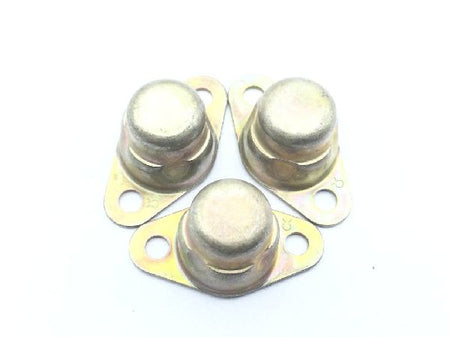

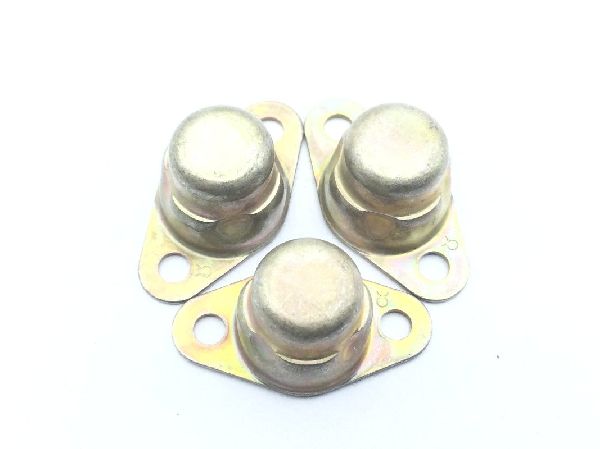

NAS1474A08 Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $11.78

Units per Pack 5

Price per Pack $58.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $58.90

Add item to quote

Material

Rubber synthetic seal

Surface Treatment

Qq-p-416 federal specification single treatment response nut

Thread Class

Thread Series

Unjc

Thread Size

0.164 inches

Center To Center Distance Between Mounting Holes Along Length: 0.590 inches
Counterbore Diameter: 0.194 inches
Distance From Aperture Center To Mounting Hole Center: 0.295 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Grade 60 military specification single material response seal class 1 mil-r-6855
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Counterbore Depth: 0.070 inches
Nut Height: 0.268 inches
Nut Length: 0.840 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Overall Height: 0.405 inches
Plate Thickness: 0.030 inches
Plate Width: 0.443 inches
Specification Data: 80205-nas1474 professional/industrial association standard
Tempurature Rating: 225 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
