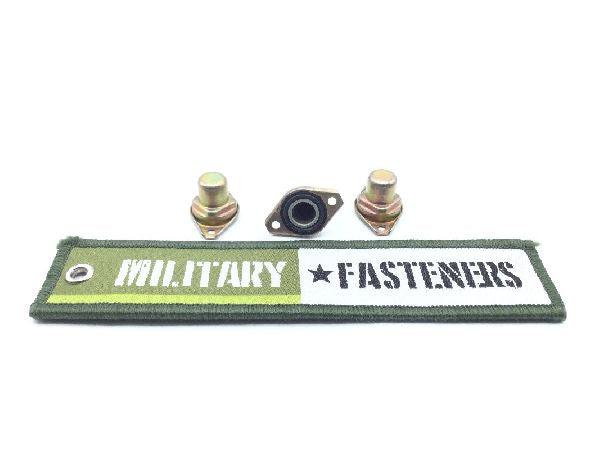

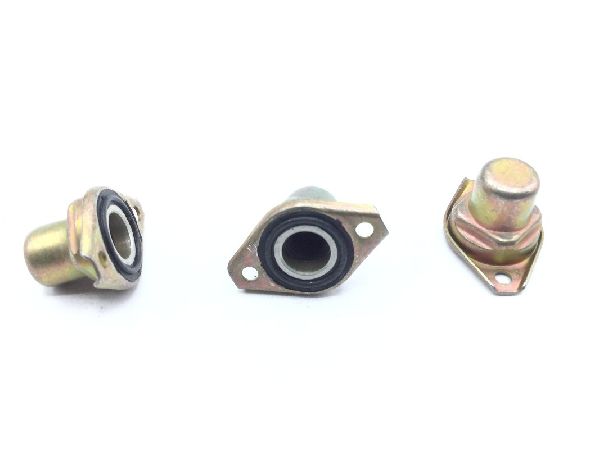

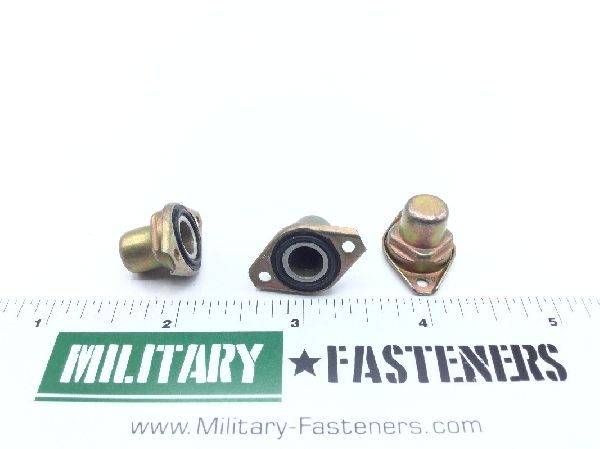

NAS1474A4 Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $8.24

Units per Pack 10

Price per Pack $82.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $82.40

Add item to quote

Material

Aluminum alloy washer or steel washer

Surface Treatment

Class 3 federal specification single treatment response nut type 1 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.25 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.75 inches and 0.754 inches
Counterbore Diameter: 0.28 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.371 inches and 0.381 inches
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: 60.0 shore durometer a
Locking Feature: Prevailing torque all metal design
Material Specification: Grade 60 military specification single material response seal class 1 mil-r-6855
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: 0.098 inches
Nut Counterbore Depth: 0.105 inches nut
Nut Height: 0.35 inches
Nut Length: 1.00 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Overall Height: 0.560 inches
Plate Thickness: 0.030 inches
Plate Width: 0.635 inches
Specification Data: 80205-nas1474 professional/industrial association standard
Tempurature Rating: Between -65.0 degrees fahrenheit and 225.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Lubrication: Dry film lubricant
