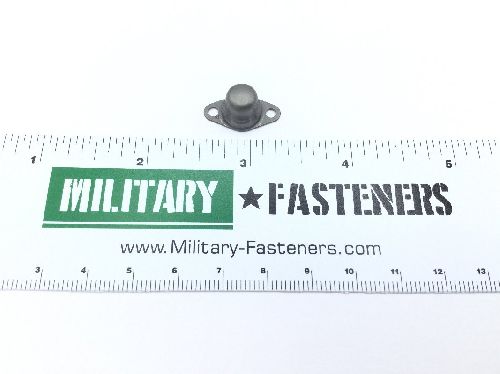

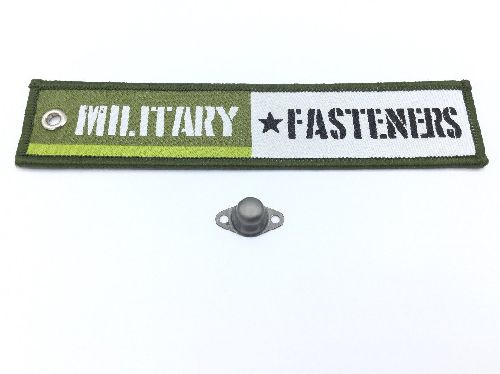

NAS1474C04 Locknut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Iron alloy 660 nut

Surface Treatment

Mil-s-5002 military specification single treatment response shell

Thread Class

Thread Series

Unjc

Thread Size

0.112 inches

Center To Center Distance Between Mounting Holes Along Length: 0.590 inches
Counterbore Diameter: 0.142 inches
Distance From Aperture Center To Mounting Hole Center: 0.295 inches
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: 70.0 shore durometer
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response shell
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Counterbore Depth: 0.070 inches
Nut Height: 0.204 inches
Nut Length: 0.840 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Overall Height: 0.405 inches
Plate Thickness: 0.030 inches
Plate Width: 0.443 inches
Precious Material And Location: Nut external surfaces silver
Specification Data: 80205-nas1474 professional/industrial association standard
Tempurature Rating: 450 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 40
