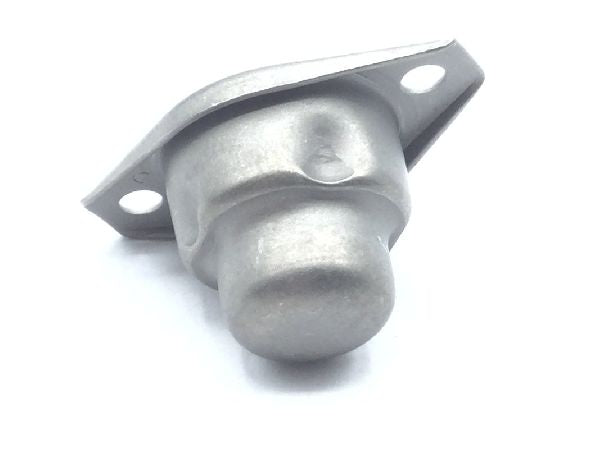

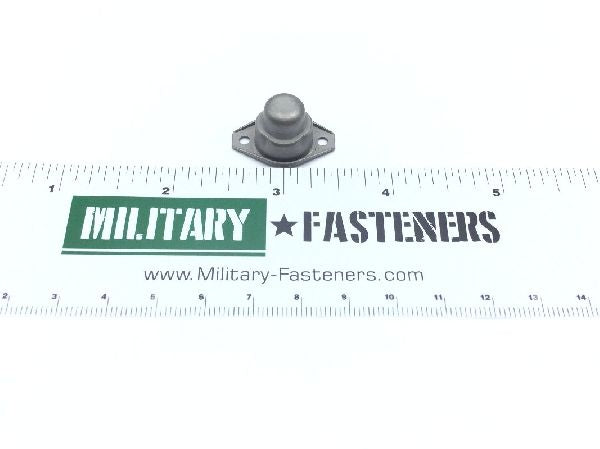

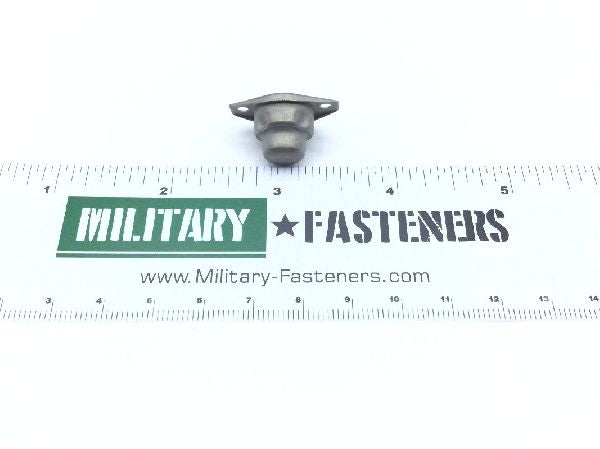

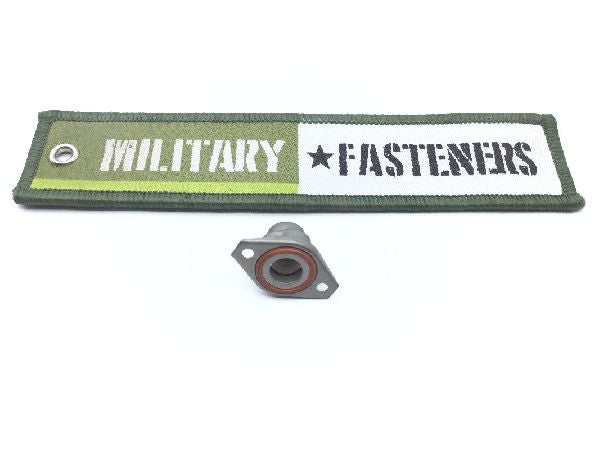

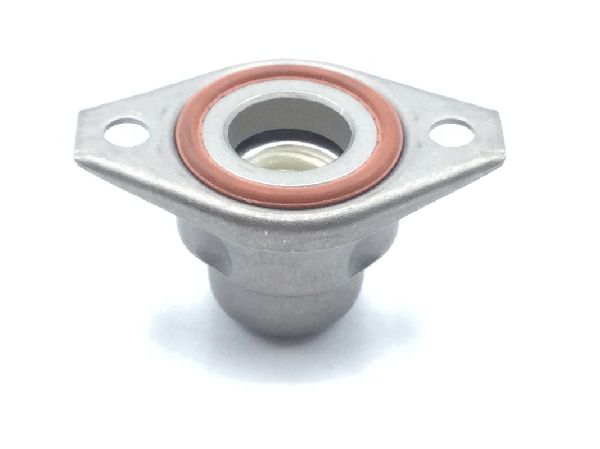

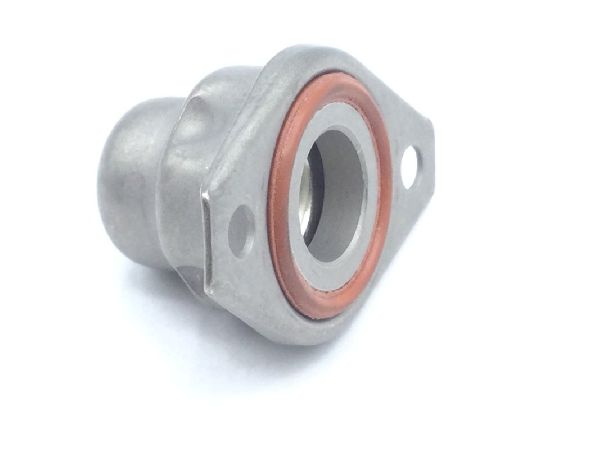

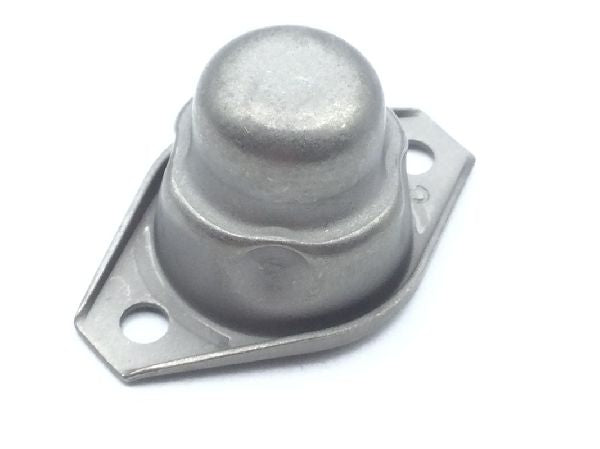

NAS1474C4 Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Iron alloy 660 shell

Surface Treatment

Qq-p-35 federal specification single treatment response shell

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.25 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.750 inches and 0.754 inches
Counterbore Diameter: 0.280 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.372 inches and 0.381 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 3304 assn standard single material response seal
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: 0.098 inches
Nut Counterbore Depth: 0.105 inches nut
Nut Height: 0.35 inches
Nut Length: 1.000 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Overall Height: 0.56 inches
Plate Thickness: 0.03 inches
Plate Width: 0.635 inches
Precious Material: Silver
Precious Material And Location: Nut silver
Specification Data: 80205-nas1474 professional/industrial association standard
Tempurature Rating: 450 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
