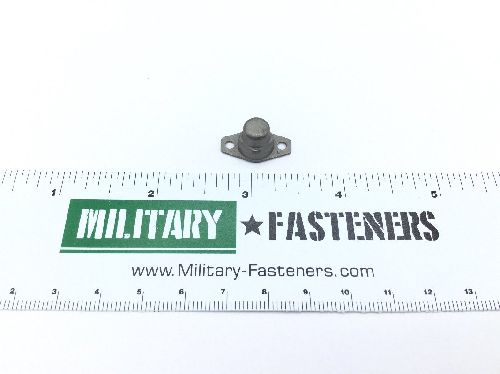

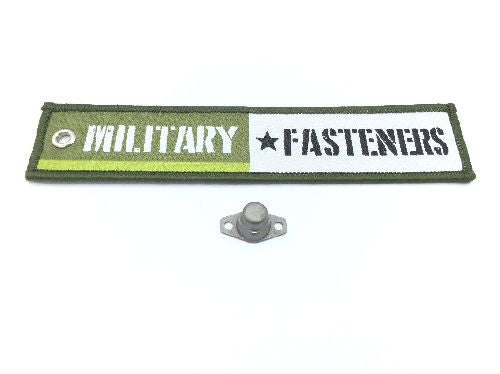

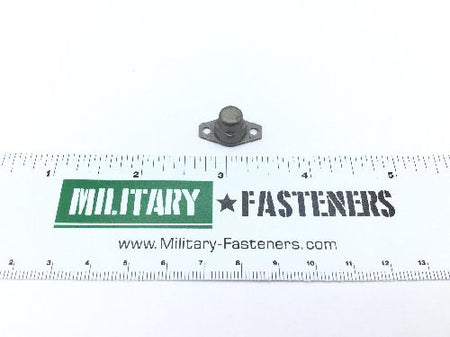

NAS1474F3 Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $12.13

Units per Pack 5

Price per Pack $60.65

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $60.65

Add item to quote

Material

Iron alloy 660 washer

Surface Treatment

Cl 2 federal specification single treatment response washer type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.589 inches and 0.592 inches
Counterbore Diameter: 0.220 inches nut
Distance From Aperture Center To Mounting Hole Center: Between 0.290 inches and 0.300 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response nut or ams 5732 assn standard single material response nut
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: 0.098 inches
Nut Counterbore Depth: 0.070 inches nut
Nut Height: 0.405 inches
Nut Length: 0.840 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.030 inches
Plate Width: 0.443 inches
Special Features: Seal color blue
Specification Data: 80205-nas1474 professional/industrial association standard
Tempurature Rating: 350.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
