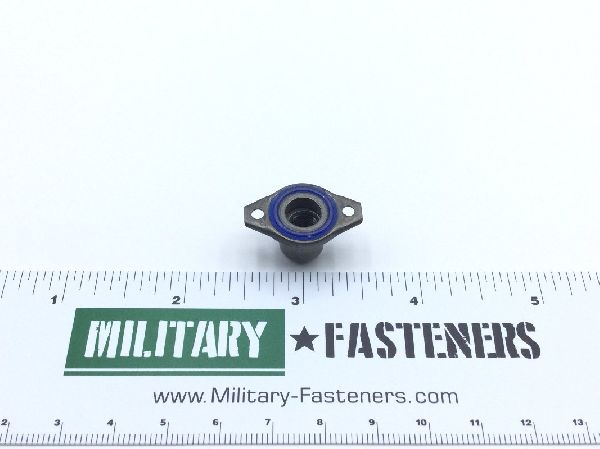

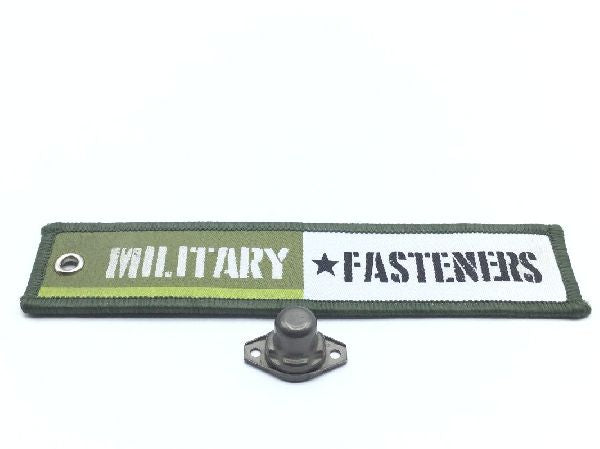

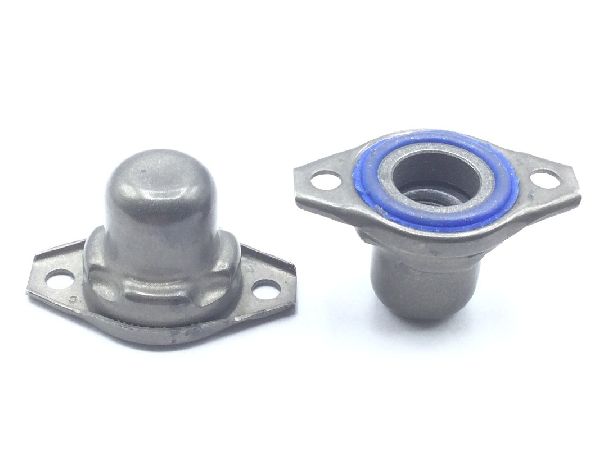

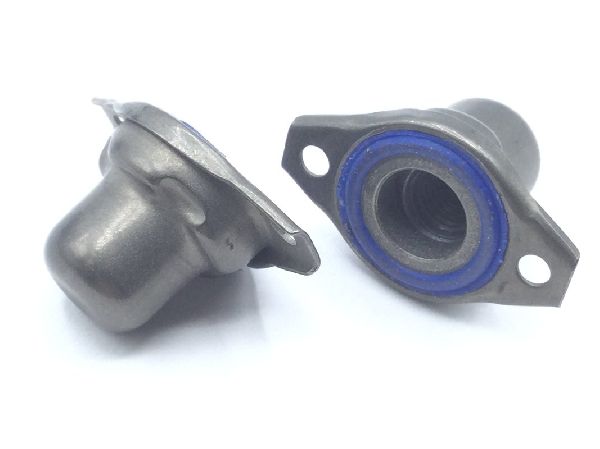

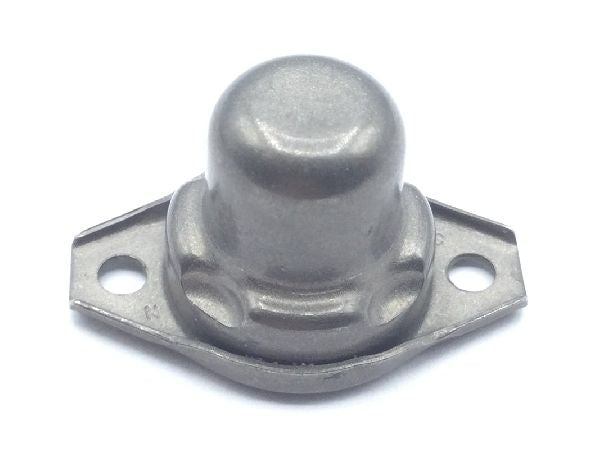

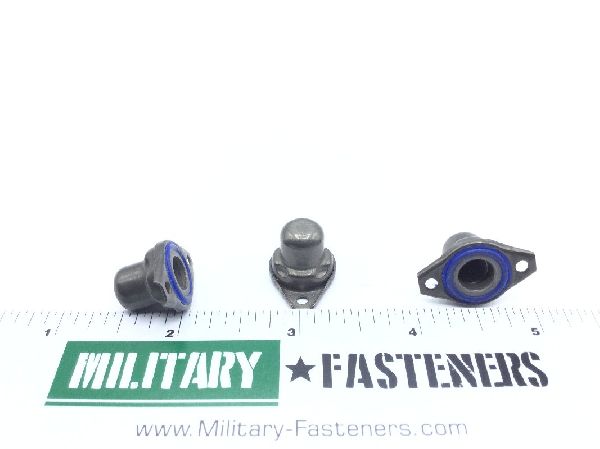

NAS1474F4 Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $22.10

Units per Pack 5

Price per Pack $110.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $110.50

Add item to quote

Material

Rubber fluorosilicone class fq seal

Surface Treatment

Qq-p-35 federal specification single treatment response nut

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.250 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.998 inches and 1.002 inches
Counterbore Diameter: 0.280 inches first end
Distance From Aperture Center To Mounting Hole Center: Between 0.495 inches and 0.505 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Mil-r-25988 military specification single material response seal
Mounting Hole Diameter: 0.098 inches
Nut Counterbore Depth: 0.105 inches first end
Nut Height: 0.350 inches
Nut Length: 1.000 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Overall Height: 0.560 inches
Plate Thickness: 0.030 inches
Plate Width: 0.635 inches
Specification Data: 80205-nas1474 professional/industrial association standard
Tempurature Rating: Between 65.0 degrees fahrenheit and 350.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Lubrication: Dry film lubricant
