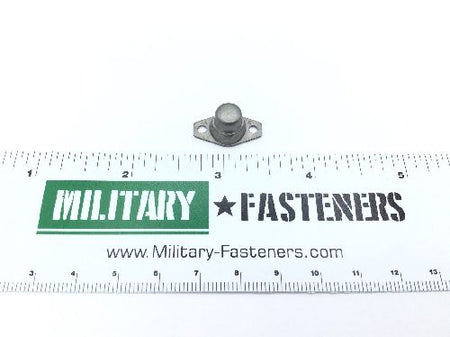

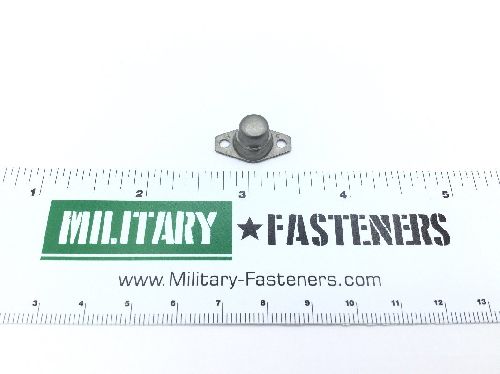

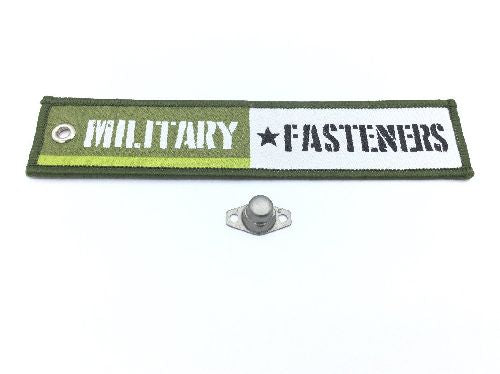

NAS1474R3 Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $20.21

Units per Pack 5

Price per Pack $101.05

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $101.05

Add item to quote

Material

Iron alloy 660 shell

Surface Treatment

Qq-p-35 federal specification single treatment response nut

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.588 inches and 0.592 inches
Counterbore Diameter: 0.220 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.290 inches and 0.300 inches
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: 60.0 shore durometer
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response shell
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: 0.098 inches
Nut Counterbore Depth: 0.070 inches
Nut Height: 0.268 inches
Nut Length: 0.840 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Overall Height: 0.405 inches
Plate Thickness: 0.030 inches
Plate Width: 0.443 inches
Specification Data: 80205-nas1774 professional/industrial association standard
Tempurature Rating: Between 65 degrees fahrenheit and 225 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
