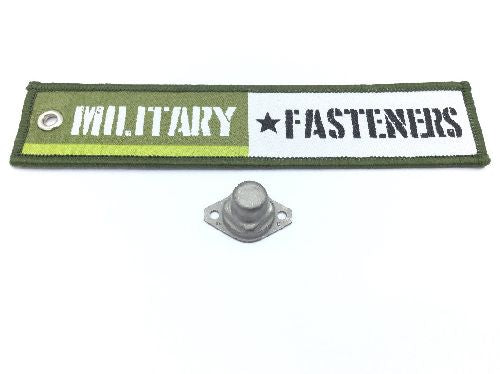

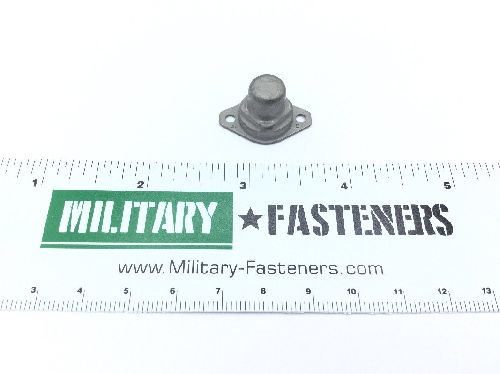

NAS1474R4 Self-Locking Nutplate

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Center To Center Distance Between Mounting Holes Along Length: Between 0.750 inches and 0.754 inches
Counterbore Diameter: 0.280 inches nut
Distance From Aperture Center To Mounting Hole Center: Between 0.371 inches and 0.381 inches
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: 60.0 shore durometer a
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response nut or ams 5732 assn standard single material response nut
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: 0.098 inches
Nut Counterbore Depth: 0.105 inches nut
Nut Height: 0.350 inches
Nut Length: 1.000 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Overall Height: 0.560 inches
Plate Thickness: 0.030 inches
Plate Width: 0.635 inches
Specification Data: 80205-nas1474 professional/industrial association standard
Tempurature Rating: Between -65.0 degrees fahrenheit and 225.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
