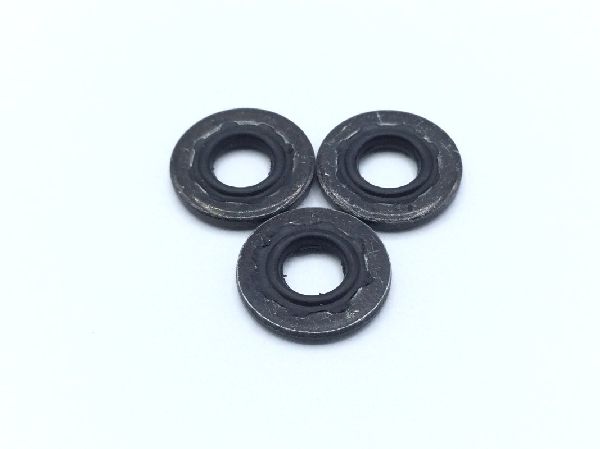

NAS1523-3F Packing with Retainer

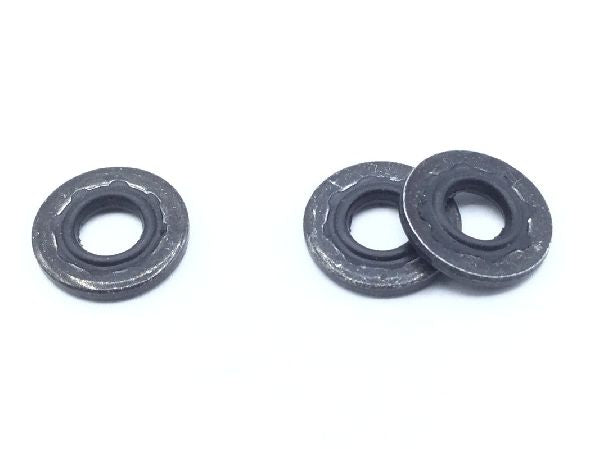

NAS1523-3F Packing with Retainer (2)

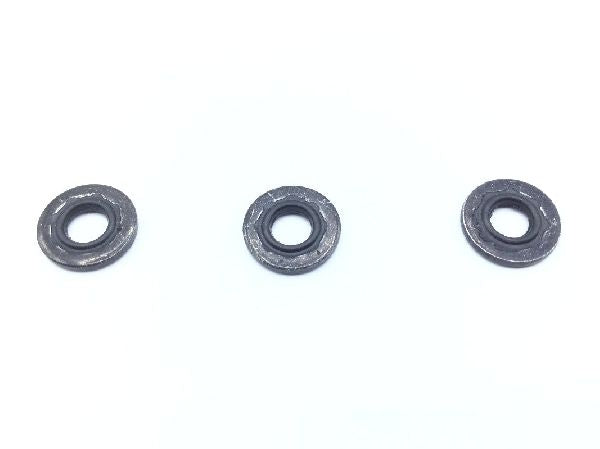

NAS1523-3F Packing with Retainer (3)

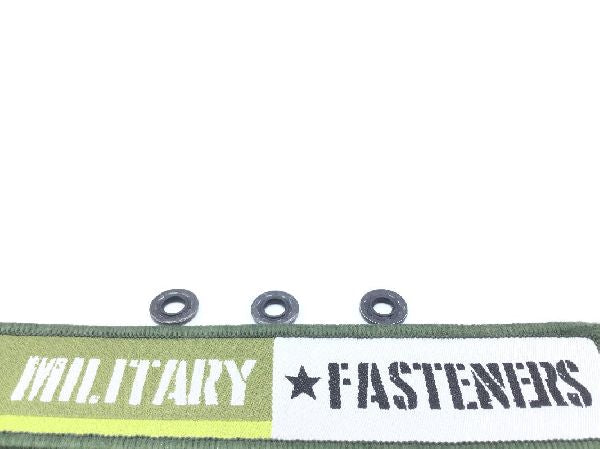

NAS1523-3F Packing with Retainer (4)

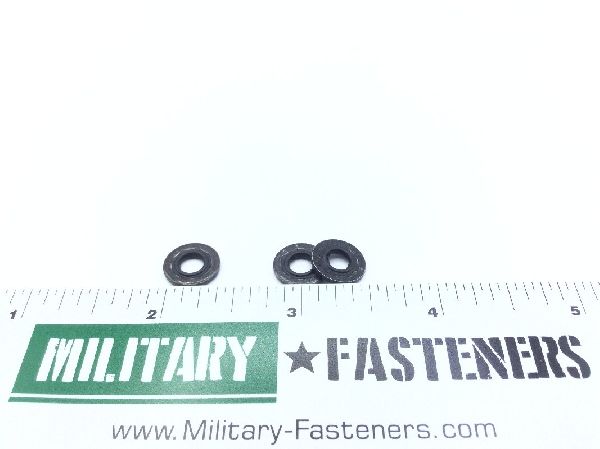

NAS1523-3F Packing with Retainer (5)

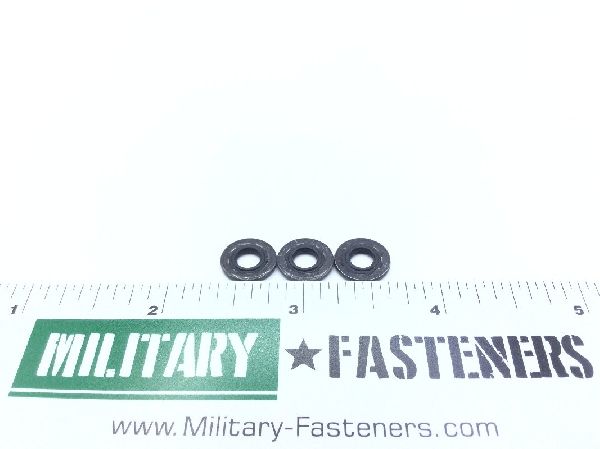

NAS1523-3F Packing with Retainer (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1523-3F Packing with Retainer

Product Series: NAS
ECCN: EAR99
Schedule: 4016.93.0000

Price per Unit $2.10

Units per Pack 20

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Material

Rubber butadiene-acrylonitrile class nbr packing

Surface Treatment

Cl 3 federal specification all treatment responses retainer qq-p-416

Construction: One-piece
Material Specification: Gr 60 military specification single material response packing mil-r-6855 cl 1
Outside Diameter: Between 0.433 inches and 0.458 inches
Packing Inside Diameter: Between 0.170 inches and 0.190 inches
Packing Ring Cross-sectional Diameter: Between 0.067 inches and 0.077 inches
Retainer Thickness: Between 0.045 inches and 0.055 inches
Specification Data: 80205-nas 1523 professional/industrial association standard
