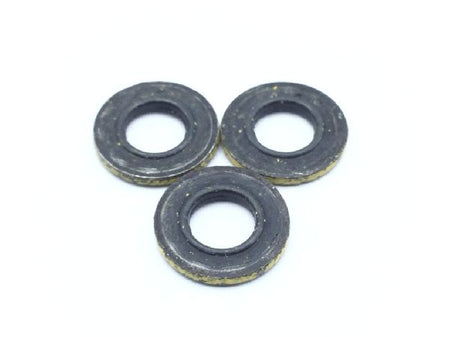

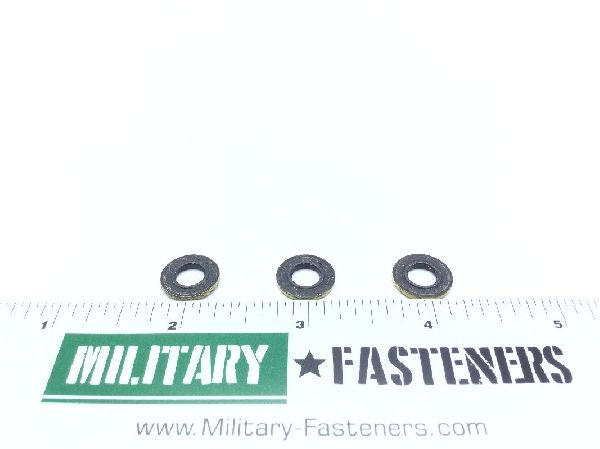

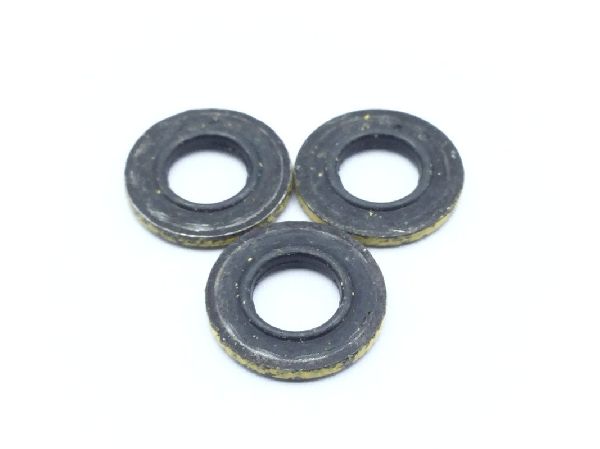

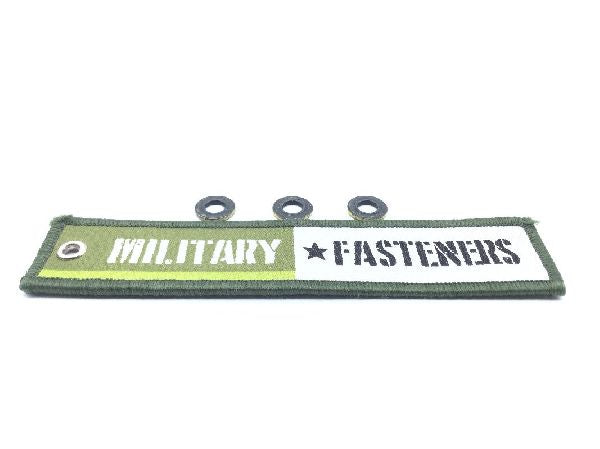

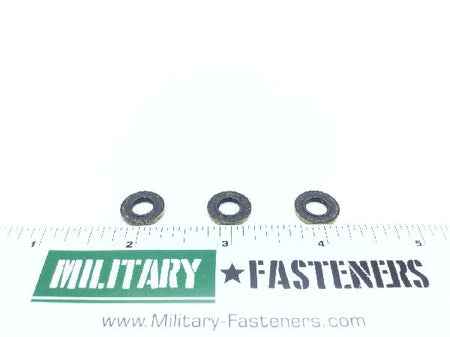

NAS1523-4Y Packing With Retainer

Product Series: NAS
ECCN: EAR99
Schedule: 4016.93.0000

Price per Unit $3.52

Units per Pack 10

Price per Pack $35.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $35.20

Add item to quote

Material

Rubber butadiene-acrylonitrile class nbr packing

Surface Treatment

Cl 2 federal specification all treatment responses retainer qq-p-416

Construction: One-piece
Material Specification: type 2 military specification single material response packing mil-r-7362
Outside Diameter: Between 0.495 inches and 0.520 inches
Packing Inside Diameter: Between 0.230 inches and 0.250 inches
Packing Ring Cross-sectional Diameter: Between 0.067 inches and 0.077 inches
Retainer Thickness: Between 0.045 inches and 0.055 inches
Special Features: Color yellow
Specification Data: 80205-nas 1523 professional/industrial association standard
