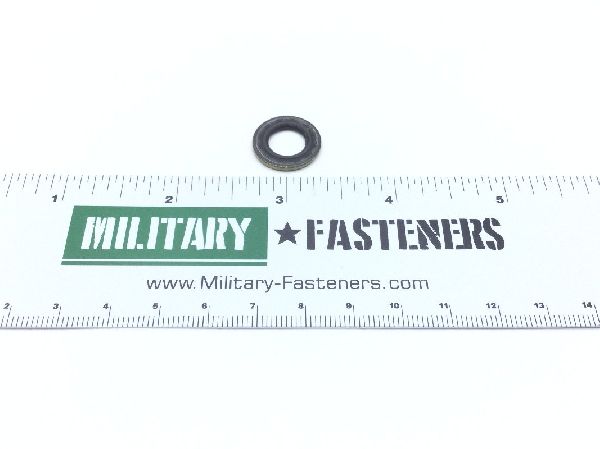

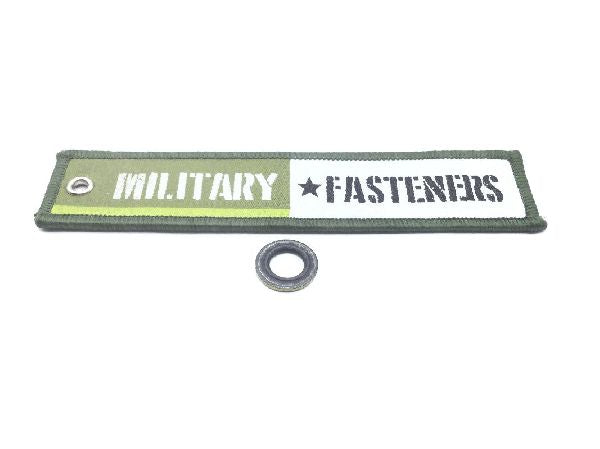

NAS1523-6Y Packing with Retainer

Product Series: NAS
ECCN: EAR99
Schedule: 4016.93.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Rubber butadiene-acrylonitrile class nbr packing

Surface Treatment

Cl 3 federal specification all treatment responses retainer qq-p-416

Construction: One-piece
Material Specification: Mil-s-18729 military specification single material response retainer
Outside Diameter: Between 0.651 inches and 0.676 inches
Packing Inside Diameter: Between 0.354 inches and 0.374 inches
Packing Ring Cross-sectional Diameter: Between 0.067 inches and 0.077 inches
Retainer Thickness: Between 0.045 inches and 0.055 inches
Specification Data: 80205-nas 1523 professional/industrial association standard
