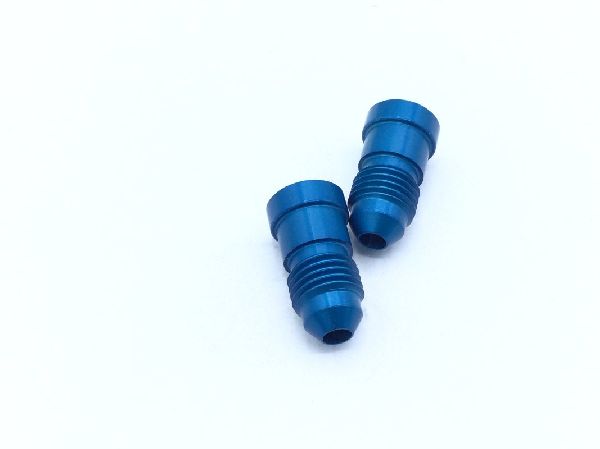

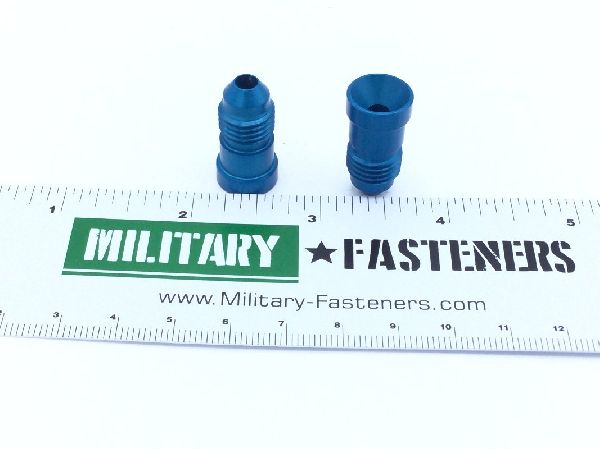

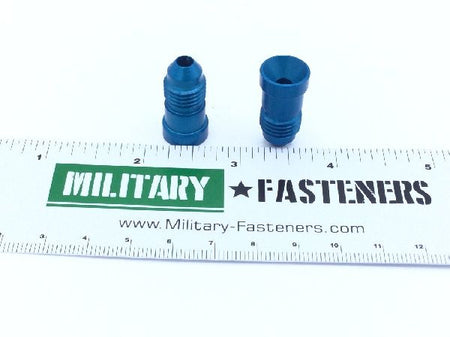

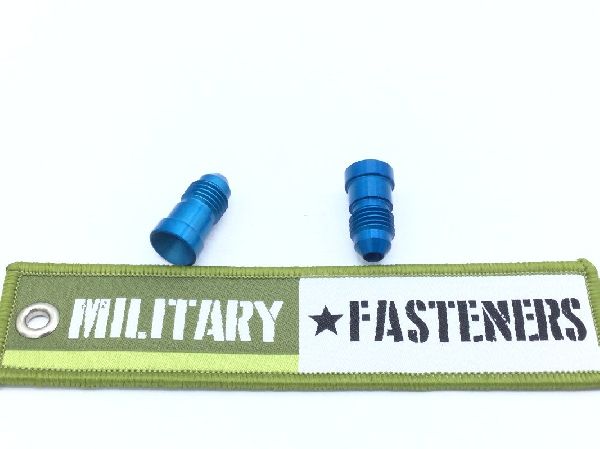

NAS1564D6-4 Tube Reducer Body
- Product Series
- NAS
- ECCN
- EAR99
- Schedule
- 7326.90.8695
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- First End Seat Angle In Deg
- 37
- Flange Outside Diameter
- Between 0.499 inches and 0.502 inches
- Flange Width
- Between 0.157 inches and 0.187 inches
- Iii End Application
- Grumman aerospace corporation a10a aircraft
- Screw Thread Series Designator
- Unf (fine thread)
- Second End Seat Angle In Deg
- 37
- Specification Data
- 80205-nas1564 professional/industrial association standard
- Style Designator
- Reducer body
- Thread Direction
- Right-hand
- Tube Outside Diameter For Which Designed
- 0.375 inches
- Working Pressure And Service Type
- 3000.0 pounds per square inch any acceptable
