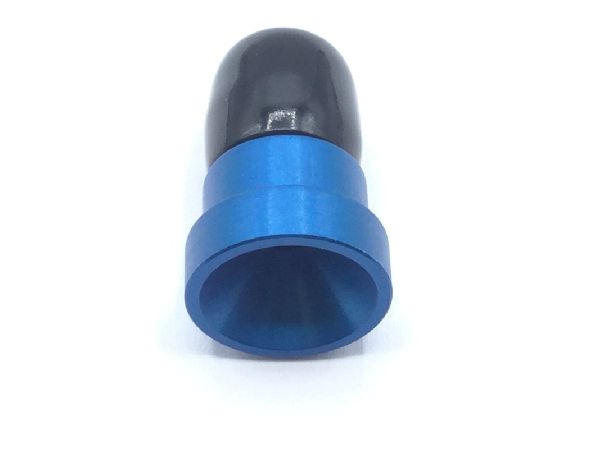

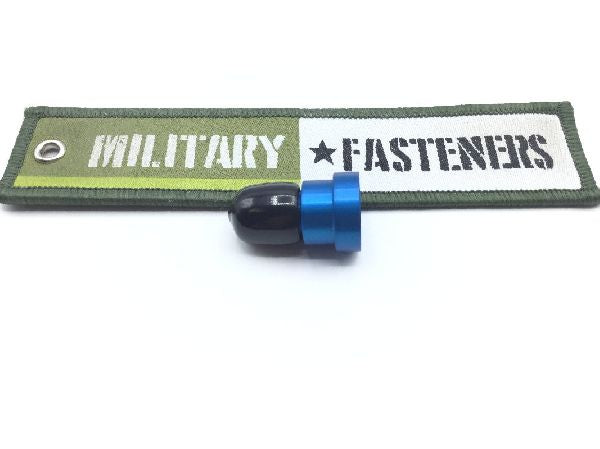

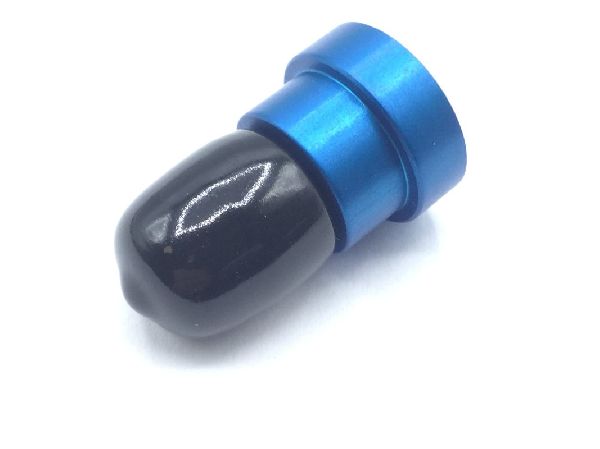

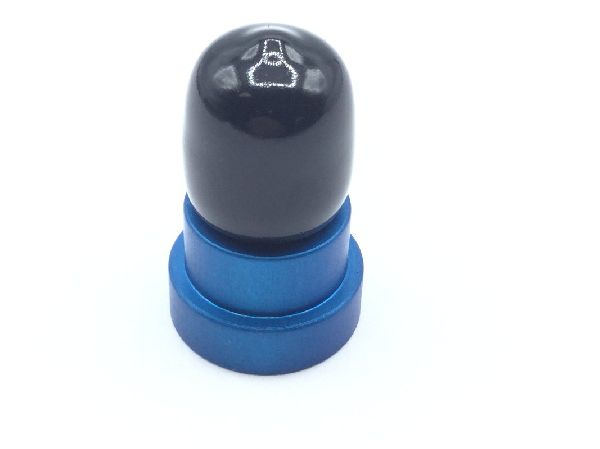

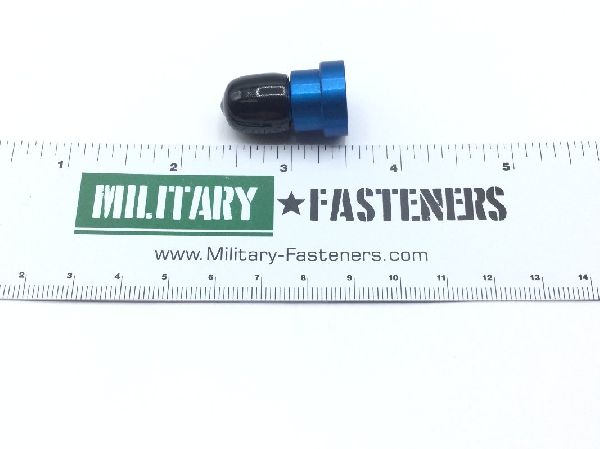

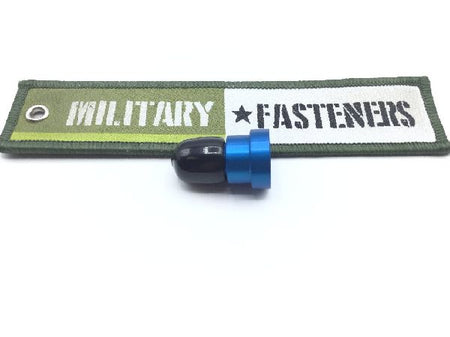

NAS1564D8-4 Tube Reducer Body

Product Series: NAS
ECCN: EAR99

Price per Unit $13.91

Units per Pack 5

Price per Pack $69.55

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $69.55

Add item to quote

Material

Aluminum alloy 2014 or aluminum alloy 2024 or aluminum alloy 2024

Overall Length

Between 1.015 inches and 1.047 inches

Thread Class

Thread Size

44028

First End Seat Angle In Deg: 37
Flange Outside Diameter: 0.682 inches
Flange Width: Between 0.203 inches and 0.234 inches
Screw Thread Series Designator: Unf (fine thread)
Second End Seat Angle In Deg: 37
Specification Data: 80205-nas1564 professional/industrial association standard
Style Designator: Reducer body
Thread Direction: Right-hand
Tube Outside Diameter For Which Designed: 0.250 inches
Working Pressure And Service Type: 3000.0 pounds per square inch any acceptable
Working Tempurature And Service Type: 380.0 degrees fahrenheit any acceptable
