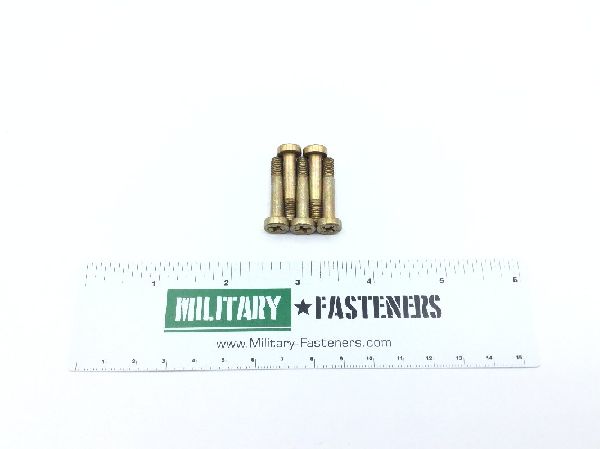

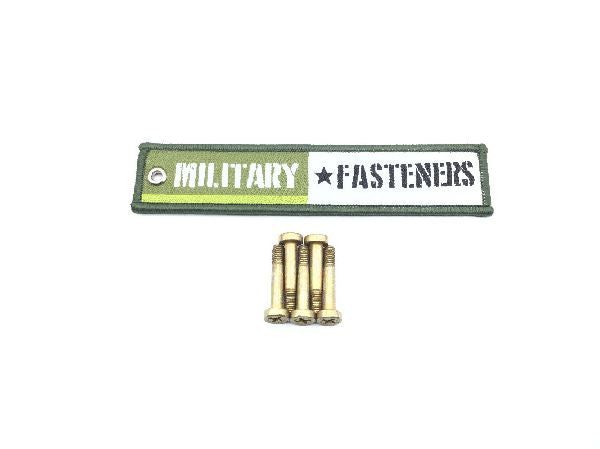

NAS1578A3T11 Close Tolerance Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $4.08

Units per Pack 10

Price per Pack $40.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.80

Add item to quote

Head Style

Pan

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 class 2 federal specification single treatment response

Thread Class

Fastener Length: Between 1.036 inches and 1.066 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.678 inches and 0.698 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.115 inches and 0.125 inches
Internal Drive Style: Offset cruciform (torque set)
Min. Tensile Strength (psi): 160000 pounds per square inch
Special Features: Internal drive ribbed
Specification Data: 80205-nas1578 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.338 inches and 0.388 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.360 inches and 0.374 inches
