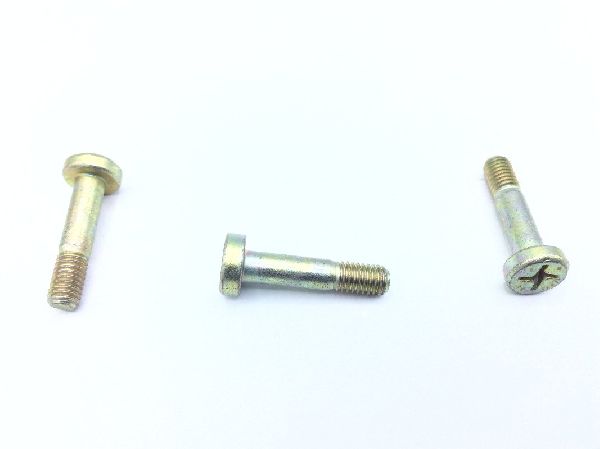

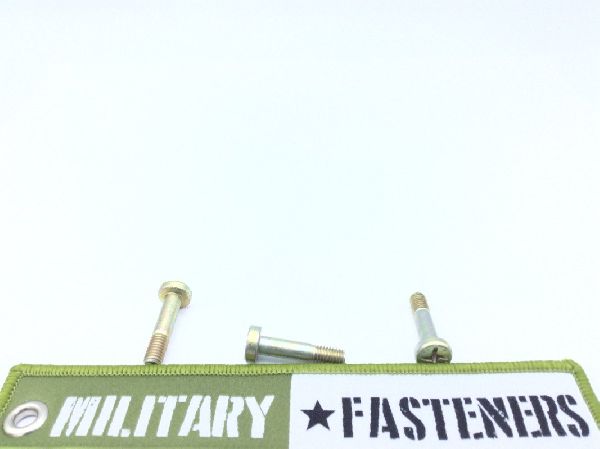

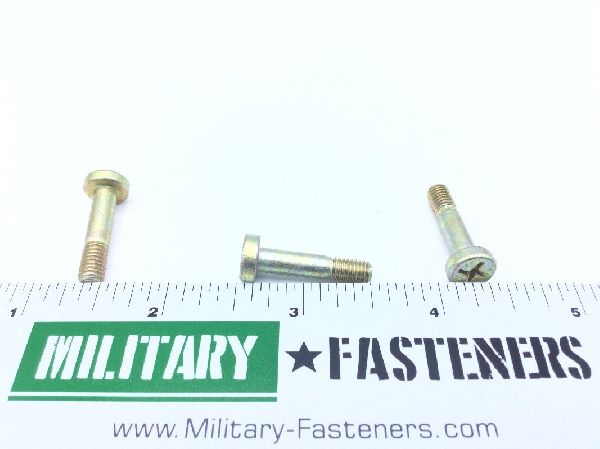

NAS1578A3T8 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $2.56

Units per Pack 20

Price per Pack $51.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $51.20

Add item to quote

Head Style

Pan no. 2

Material

Steel comp e4340 or steel comp 4140 or steel comp 8740 or steel comp 8735 or steel comp 6150

Surface Treatment

Cl 2 federal specification all treatment responses qq-p-416

Thread Class

Fastener Length: Between 0.848 inches and 0.878 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.490 inches and 0.510 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.115 inches and 0.125 inches
Internal Drive Style: Offset cruciform (torque set)
Min. Tensile Strength (psi): 160000 pounds per square inch
Special Features: Internal drive ribbed
Specification Data: 80205-nas 1578 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.338 inches and 0.388 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.360 inches and 0.374 inches
