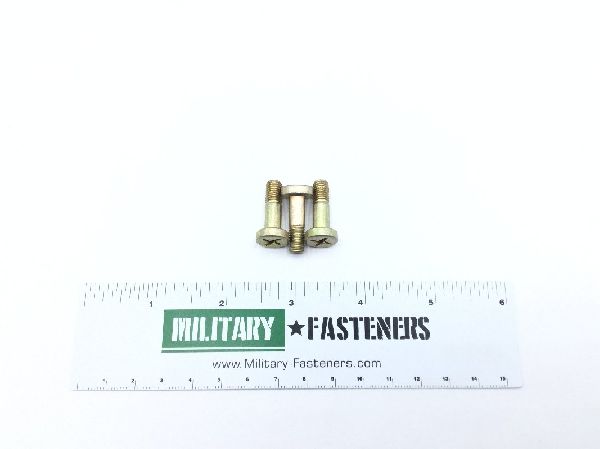

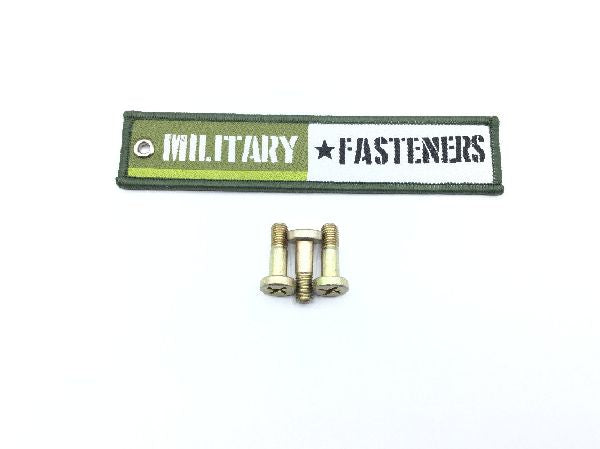

NAS1578A4T7 Close Tolerance Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $5.89

Units per Pack 10

Price per Pack $58.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $58.90

Add item to quote

Head Style

Pan no. 2

Material

Steel comp e4340 or steel comp 4140 or steel comp 8740 or steel comp 6150 or steel comp 8735

Surface Treatment

Qq-p-416 ty2 cl2 federal specification single treatment response

Thread Class

Fastener Length: Between 0.826 inches and 0.856 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.428 inches and 0.448 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.140 inches and 0.150 inches
Internal Drive Style: Offset cruciform (torque set)
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1578 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.378 inches and 0.428 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.477 inches and 0.492 inches
