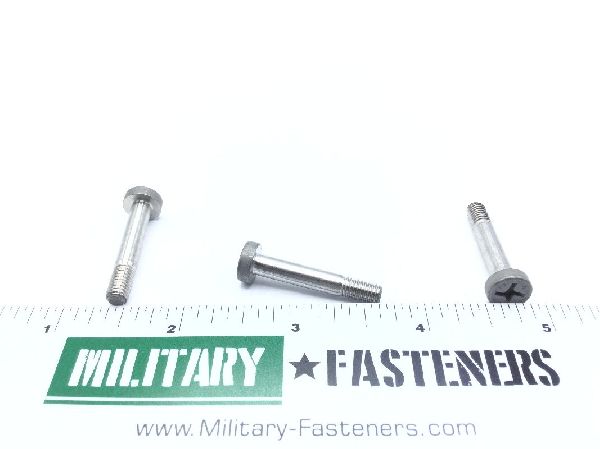

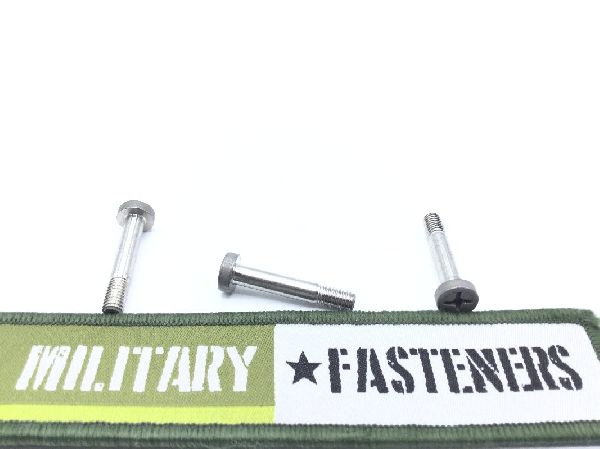

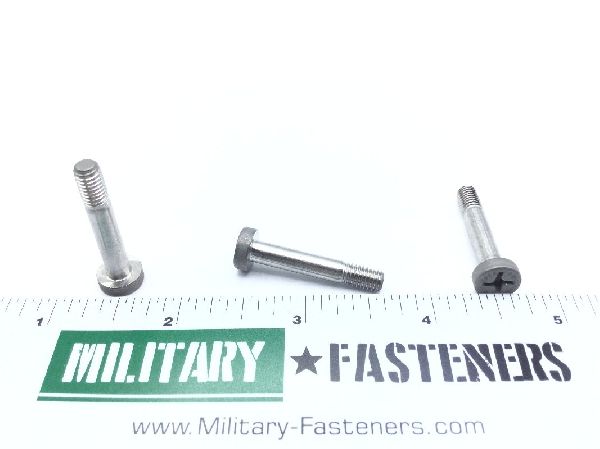

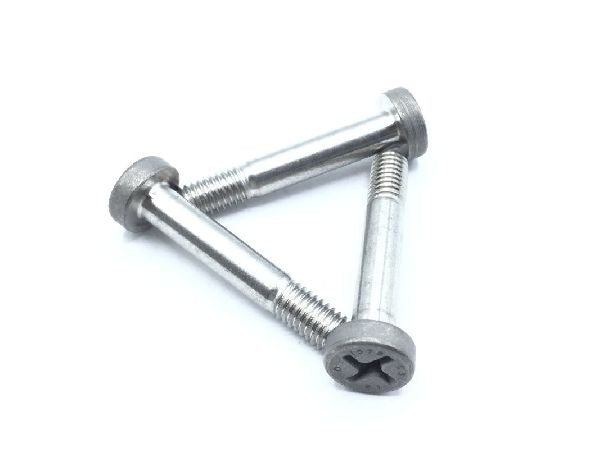

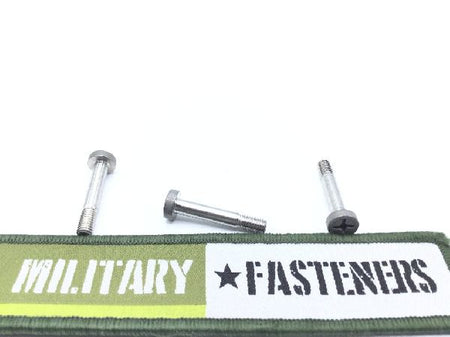

NAS1578C3T12 Close Tolerance Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $5.47

Units per Pack 10

Price per Pack $54.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $54.70

Add item to quote

Head Style

Pan no. 2

Material

Iron alloy 660

Thread Class

Fastener Length: Between 1.098 inches and 1.128 inches
Grip Diameter: 0.188 mils and 0.189 centimeters
Grip Length: 0.740 mils and 0.760 centimeters
Head Height: Between 0.115 inches and 0.125 inches
Internal Drive Style: Offset cruciform (torque set)
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.338 inches and 0.388 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.360 inches and 0.374 inches
