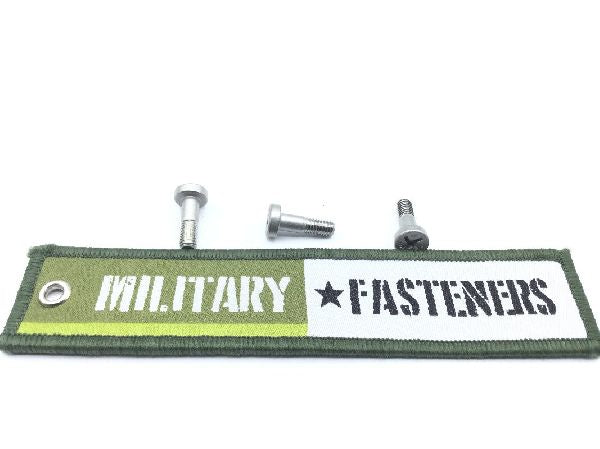

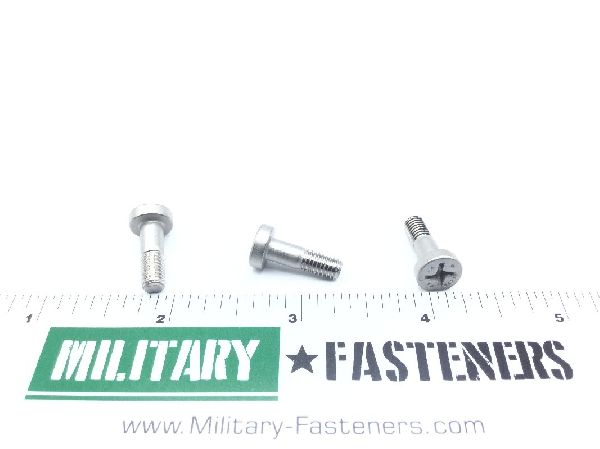

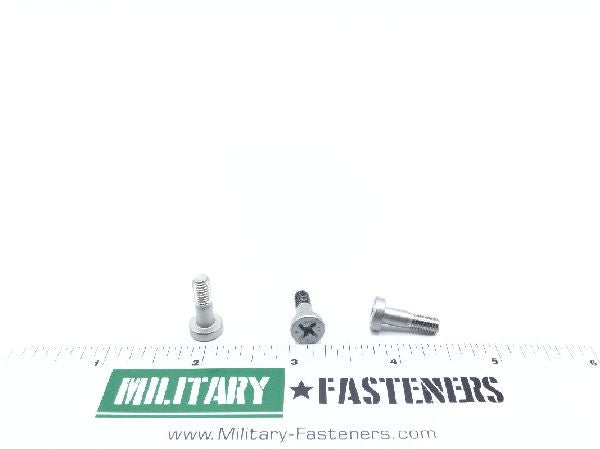

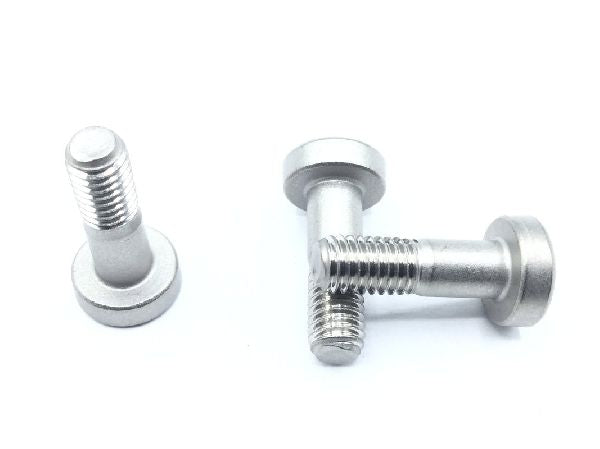

NAS1578C3T4 Close Tolerance Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Pan no. 2

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.598 inches and 0.628 inches
Grip Diameter: Between 0.1890 inches and 0.1895 inches
Grip Length: Between 0.240 inches and 0.260 inches
Head Height: Between 0.115 inches and 0.125 inches
Internal Drive Style: Offset cruciform (torque set)
Material Specification: Ams5731 assn standard single material response or ams5732 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1578 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.338 inches and 0.378 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.360 inches and 0.374 inches
