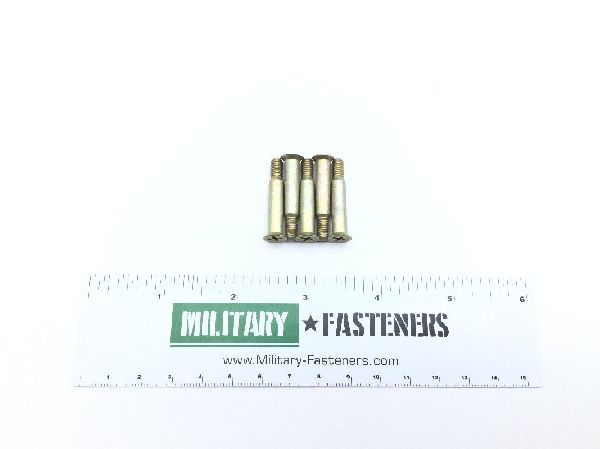

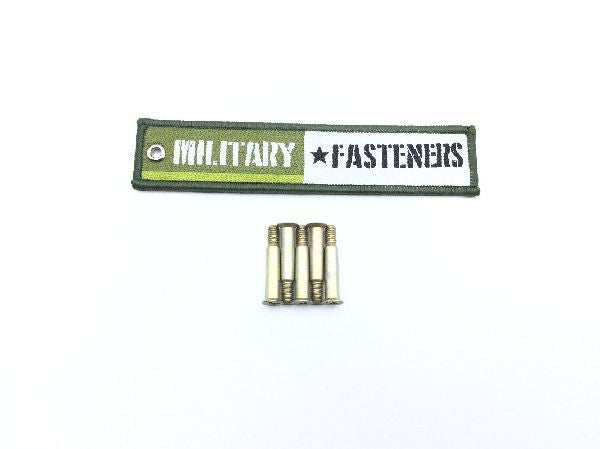

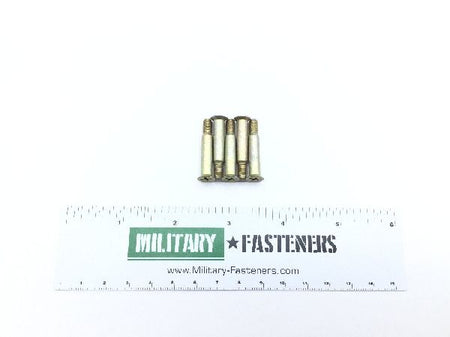

NAS1580A3T14Y Close Tolerance Screw

Product Series: NAS
ECCN: 9A991
Schedule: 7318.15.2091

Price per Unit $18.27

Units per Pack 5

Price per Pack $91.35

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $91.35

Add item to quote

Head Style

Flat countersunk

Material

Steel comp e4340 or steel comp 4140 or steel comp 8740 or steel comp 8735 or steel comp 6150

Surface Treatment

type 2 cl 2 federal specification single treatment response qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 1.223 inches and 1.253 inches
Internal Drive Style: Offset cruciform (torque set)
Shoulder Diameter: 0.2197 inches first shoulder and 0.2207 inches first shoulder
Shoulder Length: 0.865 inches first shoulder and 0.885 inches first shoulder
Shoulder Shape: Round first shoulder
Specification Data: 80205-nas1580 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.338 inches and 0.388 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.339 inches and 0.381 inches
