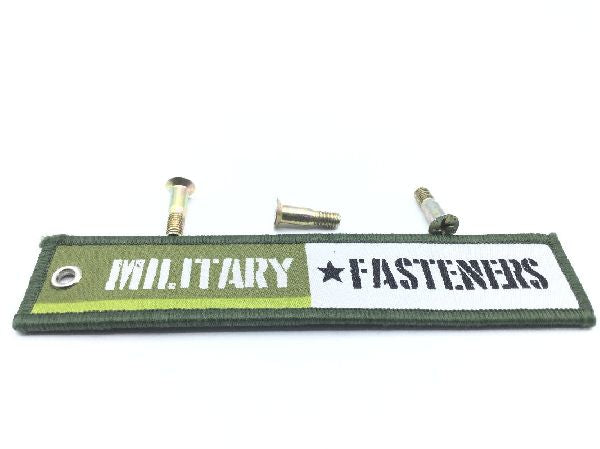

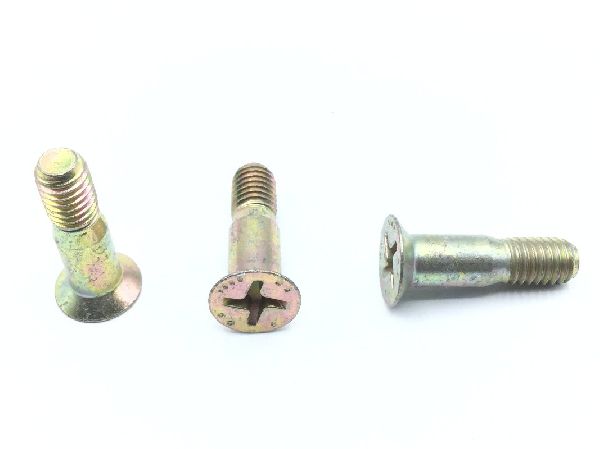

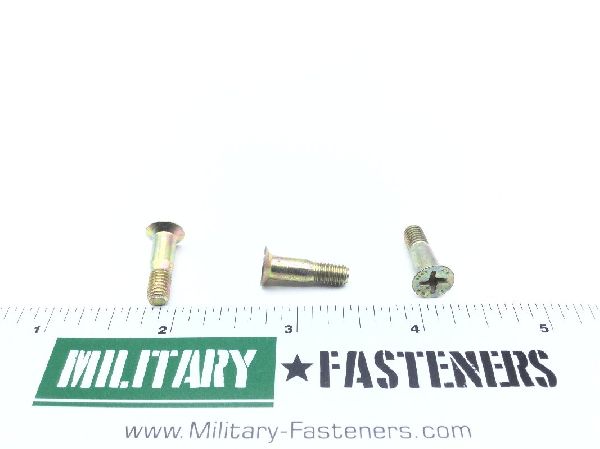

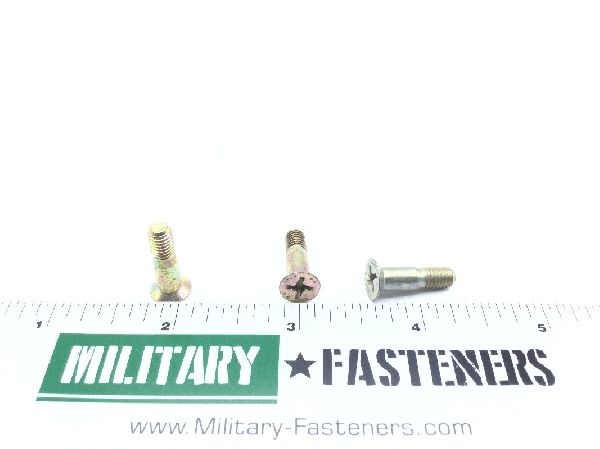

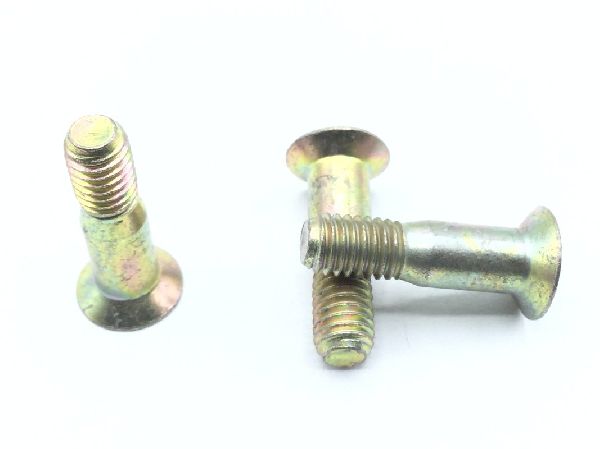

NAS1580A3T6X Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.26

Units per Pack 25

Price per Pack $31.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $31.50

Add item to quote

Head Style

Flat countersunk

Material

Steel comp

Surface Treatment

Class 2 federal specification all treatment responses type 2 qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
End Application: F-16a/b acft box beam
Fastener Length: Between 0.534 inches and 0.564 inches
Features: Finished head
Features Provided: Finished head
Internal Drive Style: Offset cruciform (torque set)
Material Specification: Mil-s-5626 uns g41400 military specification 1st material response or mil-s-5000 uns g43400 military specification 2nd material response or mil-s-6049 uns g8740 military specification 3rd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shoulder Diameter: 0.204 inches first shoulder and 0.205 inches first shoulder
Shoulder Length: 0.177 inches first shoulder and 0.197 inches first shoulder
Shoulder Shape: Round first shoulder
Specification Data: 80205-nas1580 professional/industrial association standard
Supplementary Features: Index 37 replacement screw fig. 116 ref data t.o.16w9-7-4/ecp 1292
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.363 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.339 inches and 0.381 inches
