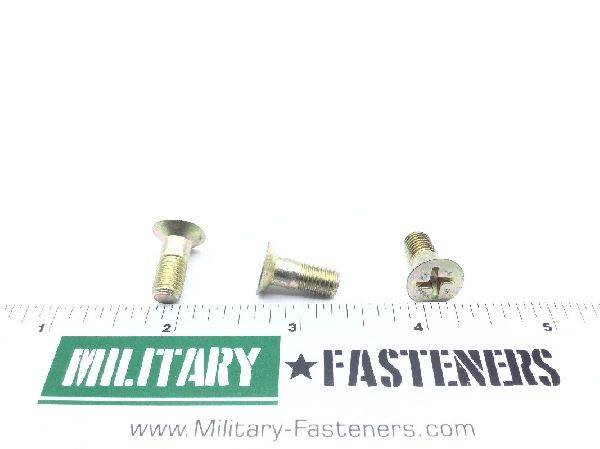

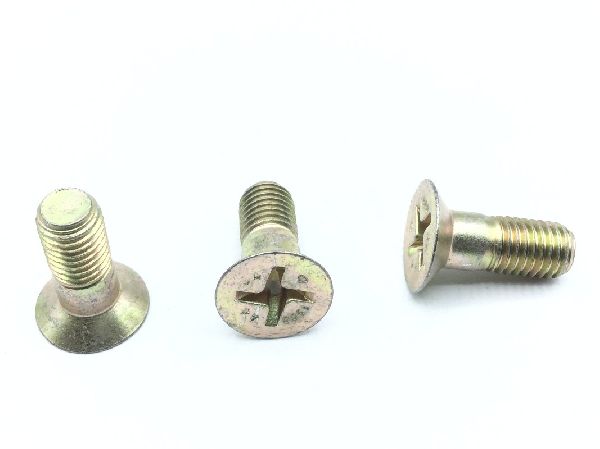

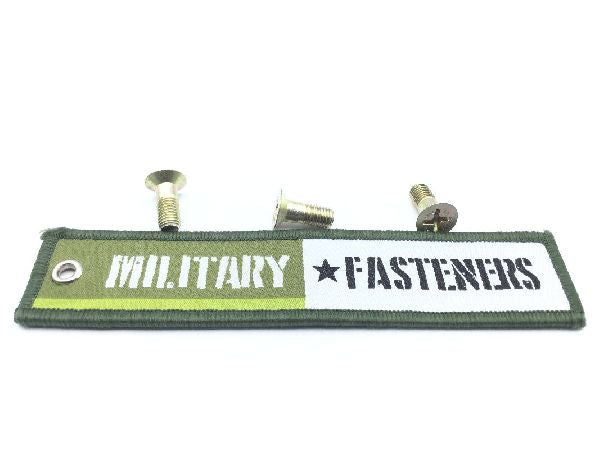

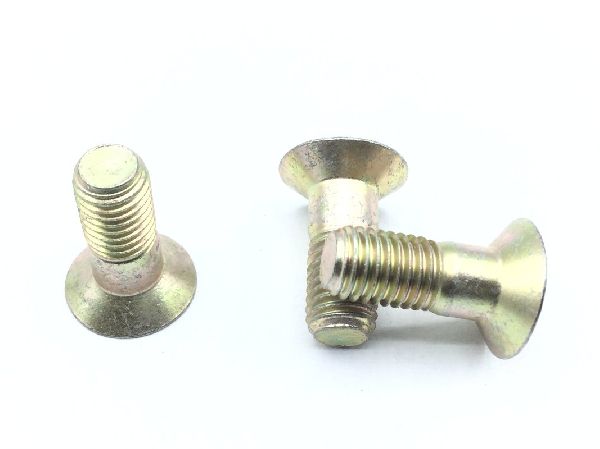

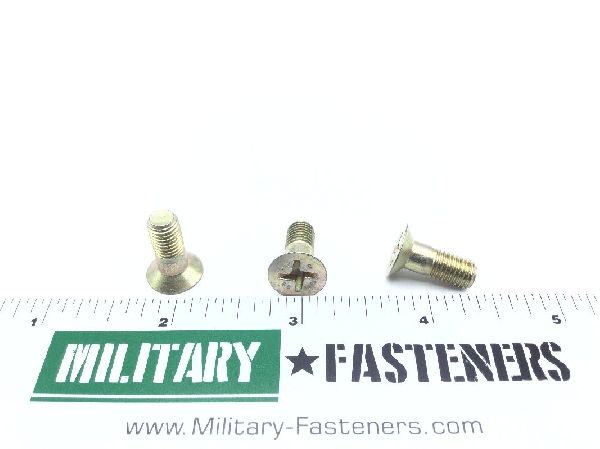

NAS1580A4T4 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.25

Units per Pack 50

Price per Pack $62.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $62.50

Add item to quote

Head Style

Flat countersunk

Material

Steel comp e4340 or steel comp 4140 or steel comp 8740 or steel comp 8735 or steel comp 6150

Surface Treatment

Qq-p-416 ty2 cl2 federal specification single treatment response

Thread Class

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.638 inches and 0.668 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.240 inches and 0.260 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Offset cruciform (torque set)
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1580 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.378 inches and 0.428 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.464 inches and 0.507 inches
