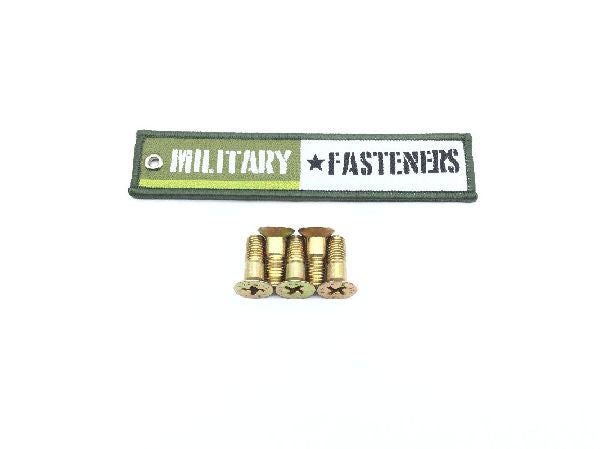

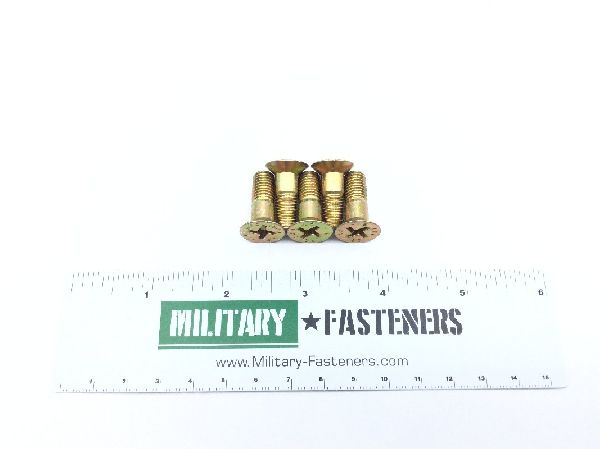

NAS1580A5T6 Close Tolerance Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $7.62

Units per Pack 10

Price per Pack $76.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $76.20

Add item to quote

Head Style

Flat countersunk

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.861 inches and 0.891 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: Between 0.365 inches and 0.385 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Offset cruciform (torque set)
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1580 professional/industrial association standard
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.476 inches and 0.526 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.578 inches and 0.633 inches
